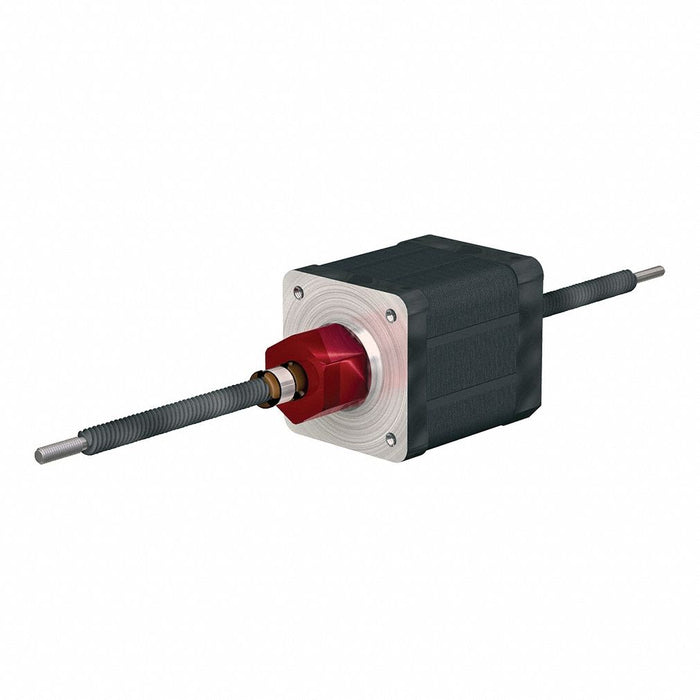

PBC Linear LSR18005T-08.00-NCF111-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 11 Stepper Motor, 3/16 in Screw Dia, 0.05 in Lead, 8 in Lg

PBC Linear LSR18005T-08.00-NCF111-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 11 Stepper Motor, 3/16 in Screw Dia, 0.05 in Lead, 8 in Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$403.59 - $403.59
$403.59
$403.59 - $403.59
$403.59

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 11, Insulation Class B, Screw Diameter 3/16 in, Lead Length 0.05 in, Screw Length 8 mm, Motor Length 41.0 mm, Rated Current 1 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw, Motor Type Stepper Motor

Motor Maximum Operating Temperature 50 Degrees C
Nut Material Stainless Steel
Motor Minimum Operating Temperature -20 Degrees C
Rated Current 1 A
Winding Resistance 2.7 ohm
Screw Material Grade 300
Assembly Type Non-Captive Lead Screw
Nut Type Anti-Backlash
Coating Material PTFE
Steps per Revolution 200
Screw Type Lead Screw
Lead Accuracy 0.003 in/ft
Frame NEMA 11
Electrical Connection Plug-In Connector
Insulation Resistance 100 Mohm
Motor IP Rating IP40
Motor Type Stepper Motor
Step Accuracy +/-5%
Phase 2
Insulation Class B
Thread Direction Right
Screw Material Stainless Steel
Travel per Step 0.0003 in
Country of Origin United States
