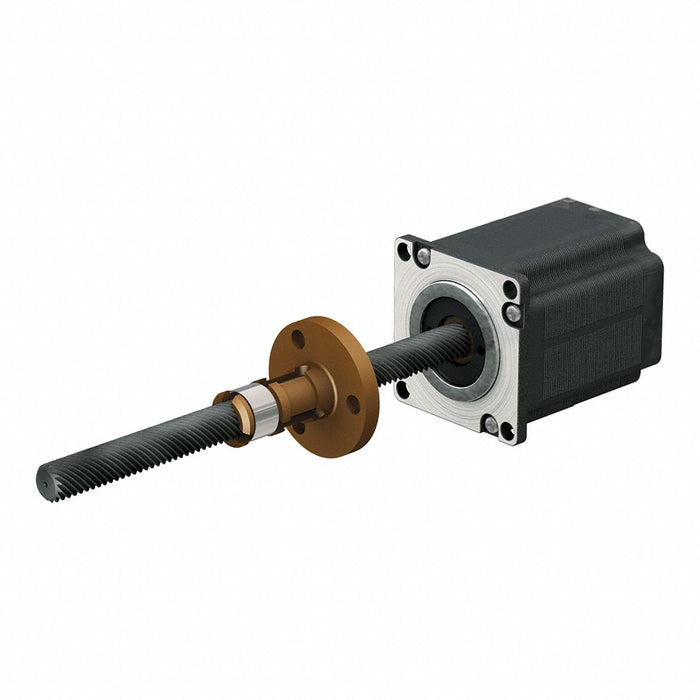

PBC Linear LSR1605T-0500-RCF-231-NNN-N Motorized Lead Screw Assembly, NEMA 23 Stepper Motor, 16 mm Screw Dia, 5 mm Lead, 500 mm Lg

PBC Linear LSR1605T-0500-RCF-231-NNN-N Motorized Lead Screw Assembly, NEMA 23 Stepper Motor, 16 mm Screw Dia, 5 mm Lead, 500 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 3.2 lbs

$515.08 - $515.08
$515.08
$515.08 - $515.08
$515.08

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Nut Shape Round, Insulation Class B, Screw Diameter 16 mm, Lead Length 5 mm, Screw Length 500 mm, Nut Length 49.5 mm, Nut Flange Diameter 54 mm, Motor Length 79.0 mm, Rated Current 2.2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Nut Material Stainless Steel
Screw Material Grade 300
Travel per Step 0.025 mm
Motor IP Rating IP40
Step Accuracy +/-5%
Thread Direction Right
Insulation Resistance 100 Mohm
Right End Components None
Motor Type Stepper Motor
Motor Minimum Operating Temperature -20 Degrees C
Winding Resistance 1.6 ohm
Steps per Revolution 200
Coating Material PTFE
Lead Accuracy 0.003 in/ft
Phase 2
Nut Shape Round
Nut Type Anti-Backlash
Electrical Connection Plug-In Connector
Nut Drag Torque 0.0250 to 0.0310 Nm
Insulation Class B
Screw Type Lead Screw
Assembly Type Lead Screw Assembly
Left End Components None
Rated Current 2.2 A
Frame NEMA 23
Motor Maximum Operating Temperature 50 Degrees C
Screw Material Stainless Steel
Percent Efficiency 55%
Nut Dynamic Load Capacity 1,040 N
Country of Origin United States
