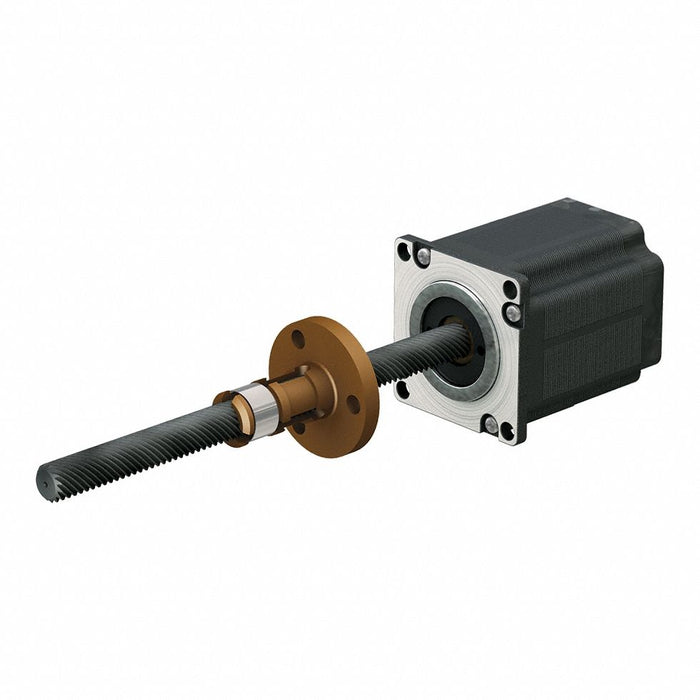

PBC Linear LSR1605T-0400-RCF-232-NNN-N Motorized Lead Screw Assembly, NEMA 23 Stepper Motor, 16 mm Screw Dia, 5 mm Lead, 400 mm Lg

PBC Linear LSR1605T-0400-RCF-232-NNN-N Motorized Lead Screw Assembly, NEMA 23 Stepper Motor, 16 mm Screw Dia, 5 mm Lead, 400 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 3 lbs

$498.07 - $498.07
$498.07
$498.07 - $498.07
$498.07

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Nut Shape Round, Insulation Class B, Screw Diameter 16 mm, Lead Length 5 mm, Screw Length 400 mm, Nut Length 49.5 mm, Nut Flange Diameter 54 mm, Motor Length 79.0 mm, Rated Current 3 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Travel per Step 0.025 mm
Nut Material Stainless Steel
Left End Components None
Assembly Type Lead Screw Assembly
Winding Resistance 1.1 ohm
Rated Current 3 A
Screw Type Lead Screw
Screw Material Grade 300
Insulation Class B
Lead Accuracy 0.003 in/ft
Percent Efficiency 55%
Insulation Resistance 100 Mohm
Nut Type Anti-Backlash
Motor IP Rating IP40
Screw Material Stainless Steel
Motor Maximum Operating Temperature 50 Degrees C
Nut Shape Round
Electrical Connection Plug-In Connector
Motor Type Stepper Motor
Right End Components None
Coating Material PTFE
Frame NEMA 23
Steps per Revolution 200
Phase 2
Step Accuracy +/-5%
Motor Minimum Operating Temperature -20 Degrees C
Thread Direction Right
Nut Drag Torque 0.0250 to 0.0310 Nm
Nut Dynamic Load Capacity 1,040 N
Country of Origin United States
