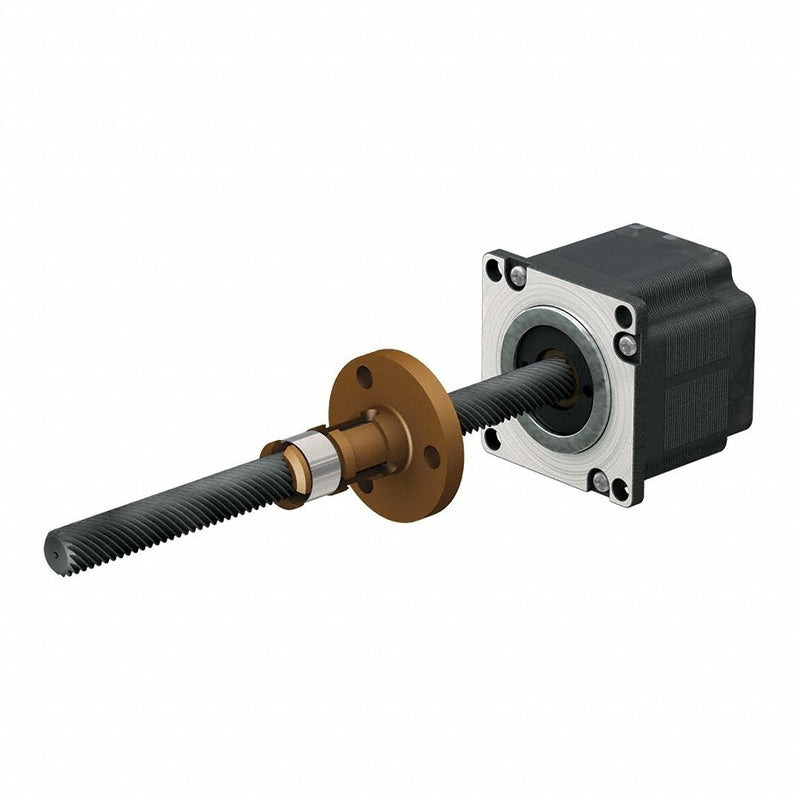

PBC Linear LSR1601T-0300-RCF-231-NNN-N Motorized Lead Screw Assembly, NEMA 23 Stepper Motor, 16 mm Screw Dia, 1 mm Lead, 300 mm Lg

PBC Linear LSR1601T-0300-RCF-231-NNN-N Motorized Lead Screw Assembly, NEMA 23 Stepper Motor, 16 mm Screw Dia, 1 mm Lead, 300 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 2.5 lbs

$441.01 - $441.01
$441.01
$441.01 - $441.01
$441.01

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Nut Shape Round, Insulation Class B, Screw Diameter 16 mm, Lead Length 1 mm, Screw Length 300 mm, Nut Length 49.5 mm, Nut Flange Diameter 54 mm, Motor Length 57.0 mm, Rated Current 2.2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Percent Efficiency 19%
Nut Material Stainless Steel
Insulation Resistance 100 Mohm
Nut Shape Round
Electrical Connection Plug-In Connector
Travel per Step 0.005 mm
Left End Components None
Rated Current 2.2 A
Step Accuracy +/-5%
Nut Drag Torque 0.0250 to 0.0310 Nm
Frame NEMA 23
Screw Type Lead Screw
Thread Direction Right
Steps per Revolution 200
Motor Type Stepper Motor
Phase 2
Assembly Type Lead Screw Assembly
Motor IP Rating IP40
Motor Maximum Operating Temperature 50 Degrees C
Nut Type Anti-Backlash
Insulation Class B
Winding Resistance 1.6 ohm
Motor Minimum Operating Temperature -20 Degrees C
Coating Material PTFE
Lead Accuracy 0.003 in/ft
Screw Material Stainless Steel
Right End Components None
Screw Material Grade 300
Nut Dynamic Load Capacity 1,040 N
Country of Origin United States
