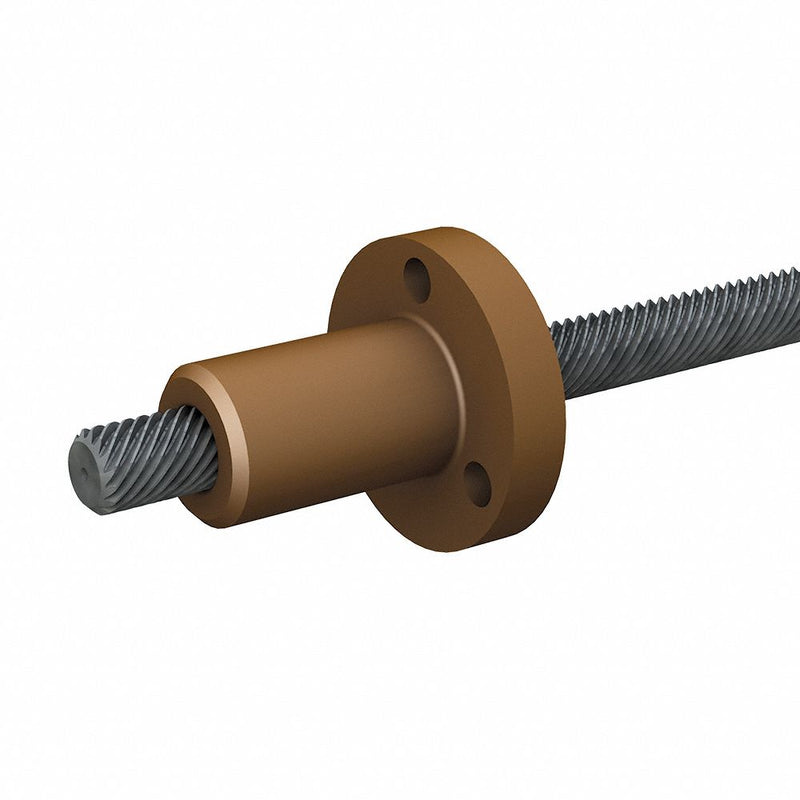

PBC Linear LSR1205T-0508-RS-NNN-NNN-N Precision Lead Screw, 12 mm Screw Dia, 5 mm Lead, 508 mm Lg, Standard Nut

PBC Linear LSR1205T-0508-RS-NNN-NNN-N Precision Lead Screw, 12 mm Screw Dia, 5 mm Lead, 508 mm Lg, Standard Nut

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.5 lbs

$196.55 - $196.55
$196.55
$196.55 - $196.55
$196.55

Precision Lead Screw, Nut Type Standard, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Nut Shape Round, Screw Diameter 12 mm, Lead Length 5 mm, Screw Length 508 mm, Nut Length 38.1 mm, Nut Flange Diameter 44.5 mm, Nut Dynamic Load Capacity 778 N, Assembly Type Lead Screw and Nut Assembly, Nut Bolt Circle Diameter 35.7 mm, Nut Diameter 16.9 mm, Nut Flange Thickness 6.4 mm

Thread Direction Right
Screw Type Lead Screw
Assembly Type Lead Screw and Nut Assembly
Nut Type Standard
Nut Shape Round
Coating Material PTFE
Screw Material Stainless Steel
Screw Material Grade 300
Nut Material Stainless Steel
Lead Accuracy 0.003 in/ft
Nut Drag Torque Free Wheeling
Percent Efficiency 62%
Left End Components None
Right End Components None
Nut Dynamic Load Capacity 778 N
Country of Origin United States
