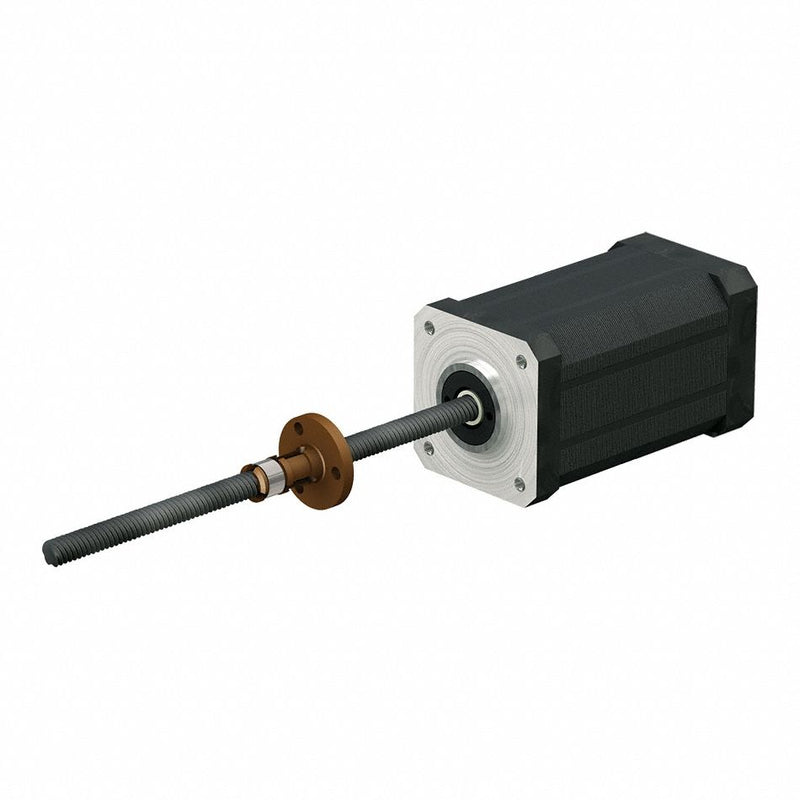

PBC Linear LSR1205T-0500-RCF-172-NNN-N Motorized Lead Screw Assembly, NEMA 17 Stepper Motor, 12 mm Screw Dia, 5 mm Lead, 500 mm Lg

PBC Linear LSR1205T-0500-RCF-172-NNN-N Motorized Lead Screw Assembly, NEMA 17 Stepper Motor, 12 mm Screw Dia, 5 mm Lead, 500 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 2 lbs

$506.17 - $506.17
$506.17
$506.17 - $506.17
$506.17

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 17, Nut Shape Round, Insulation Class B, Screw Diameter 12 mm, Lead Length 5 mm, Screw Length 500 mm, Nut Length 44.5 mm, Nut Flange Diameter 44.5 mm, Motor Length 48.3 mm, Rated Current 2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Percent Efficiency 62%
Nut Material Stainless Steel
Motor Maximum Operating Temperature 50 Degrees C
Nut Drag Torque 0.0211 to 0.0264 Nm
Rated Current 2 A
Coating Material PTFE
Screw Material Grade 300
Nut Shape Round
Winding Resistance 1.3 ohm
Phase 2
Insulation Class B
Screw Material Stainless Steel
Nut Type Anti-Backlash
Lead Accuracy 0.003 in/ft
Motor Type Stepper Motor
Right End Components None
Left End Components None
Travel per Step 0.025 mm
Motor IP Rating IP40
Screw Type Lead Screw
Thread Direction Right
Motor Minimum Operating Temperature -20 Degrees C
Step Accuracy +/-5%
Insulation Resistance 100 Mohm
Assembly Type Lead Screw Assembly
Frame NEMA 17
Steps per Revolution 200
Electrical Connection Plug-In Connector
Nut Dynamic Load Capacity 703 N
Country of Origin United States
