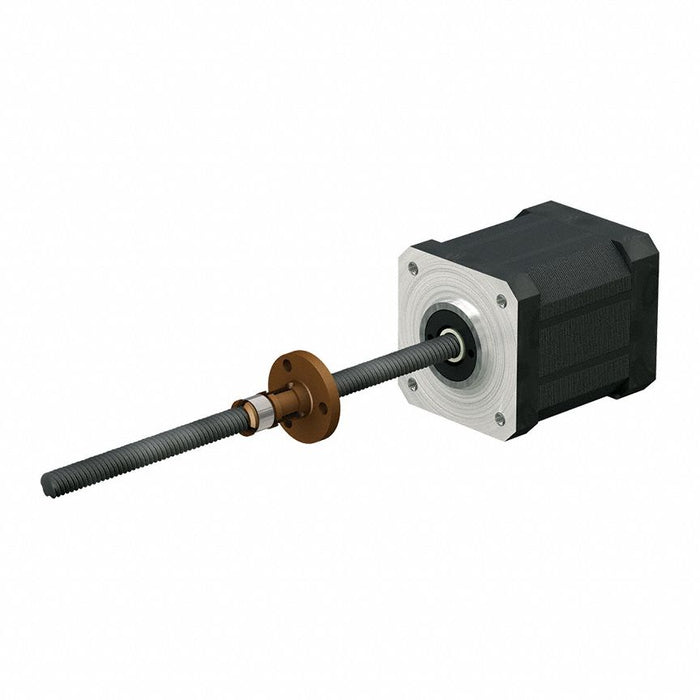

PBC Linear LSR1205T-0400-RCF-171-NNN-N Motorized Lead Screw Assembly, NEMA 17 Stepper Motor, 12 mm Screw Dia, 5 mm Lead, 400 mm Lg

PBC Linear LSR1205T-0400-RCF-171-NNN-N Motorized Lead Screw Assembly, NEMA 17 Stepper Motor, 12 mm Screw Dia, 5 mm Lead, 400 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.5 lbs

$423.19 - $423.19
$423.19
$423.19 - $423.19
$423.19

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 17, Nut Shape Round, Insulation Class B, Screw Diameter 12 mm, Lead Length 5 mm, Screw Length 400 mm, Nut Length 44.5 mm, Nut Flange Diameter 44.5 mm, Motor Length 39.8 mm, Rated Current 2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Insulation Class B
Nut Material Stainless Steel
Nut Type Anti-Backlash
Phase 2
Screw Type Lead Screw
Lead Accuracy 0.003 in/ft
Steps per Revolution 200
Insulation Resistance 100 Mohm
Nut Shape Round
Travel per Step 0.025 mm
Frame NEMA 17
Motor Type Stepper Motor
Motor Minimum Operating Temperature -20 Degrees C
Rated Current 2 A
Thread Direction Right
Coating Material PTFE
Motor IP Rating IP40
Electrical Connection Plug-In Connector
Motor Maximum Operating Temperature 50 Degrees C
Left End Components None
Right End Components None
Screw Material Grade 300
Screw Material Stainless Steel
Winding Resistance 1.04 ohm
Percent Efficiency 62%
Step Accuracy +/-5%
Assembly Type Lead Screw Assembly
Nut Drag Torque 0.0211 to 0.0264 Nm
Nut Dynamic Load Capacity 703 N
Country of Origin United States
