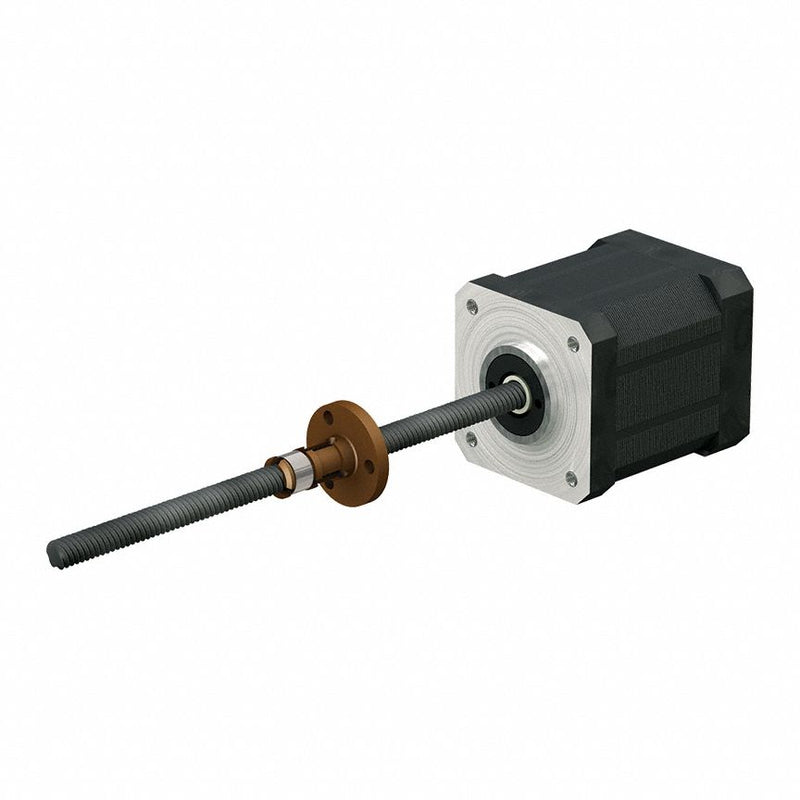

PBC Linear LSR1201T-0300-RCF-171-NNN-N Motorized Lead Screw Assembly, NEMA 17 Stepper Motor, 12 mm Screw Dia, 1 mm Lead, 300 mm Lg

PBC Linear LSR1201T-0300-RCF-171-NNN-N Motorized Lead Screw Assembly, NEMA 17 Stepper Motor, 12 mm Screw Dia, 1 mm Lead, 300 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.6 lbs

$384.22 - $384.22
$384.22
$384.22 - $384.22
$384.22

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 17, Nut Shape Round, Insulation Class B, Screw Diameter 12 mm, Lead Length 1 mm, Screw Length 300 mm, Nut Length 44.5 mm, Nut Flange Diameter 44.5 mm, Motor Length 39.8 mm, Rated Current 2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Motor Minimum Operating Temperature -20 Degrees C
Motor Maximum Operating Temperature 50 Degrees C
Screw Material Grade 300
Percent Efficiency 24%
Nut Type Anti-Backlash
Insulation Class B
Electrical Connection Plug-In Connector
Motor IP Rating IP40
Nut Drag Torque 0.0211 to 0.0264 Nm
Left End Components None
Steps per Revolution 200
Screw Material Stainless Steel
Rated Current 2 A
Frame NEMA 17
Motor Type Stepper Motor
Assembly Type Lead Screw Assembly
Screw Type Lead Screw
Thread Direction Right
Travel per Step 0.005 mm
Step Accuracy +/-5%
Coating Material PTFE
Insulation Resistance 100 Mohm
Winding Resistance 1.04 ohm
Lead Accuracy 0.003 in/ft
Right End Components None
Phase 2
Nut Material Stainless Steel
Nut Shape Round
Nut Dynamic Load Capacity 703 N
Country of Origin United States
