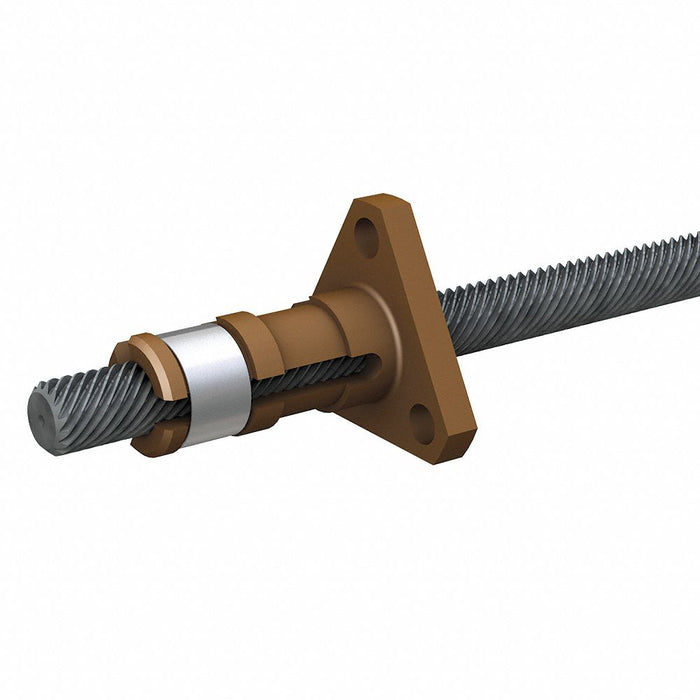

PBC Linear LSR1201T-0254-TCF-NNN-NNN-N Precision Lead Screw, 12 mm Screw Dia, 1 mm Lead, 254 mm Lg, Anti-Backlash Nut

PBC Linear LSR1201T-0254-TCF-NNN-NNN-N Precision Lead Screw, 12 mm Screw Dia, 1 mm Lead, 254 mm Lg, Anti-Backlash Nut

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$135.79 - $135.79
$135.79
$135.79 - $135.79
$135.79

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Nut Shape Triangle, Screw Diameter 12 mm, Lead Length 1 mm, Screw Length 254 mm, Nut Length 44.5 mm, Nut Flange Diameter 44.5 mm, Nut Dynamic Load Capacity 703 N, Assembly Type Lead Screw and Nut Assembly, Nut Bolt Circle Diameter 35.7 mm, Nut Diameter 16.9 mm, Nut Flange Thickness 6.4 mm

Thread Direction Right
Screw Type Lead Screw
Assembly Type Lead Screw and Nut Assembly
Nut Type Anti-Backlash
Nut Shape Triangle
Coating Material PTFE
Screw Material Stainless Steel
Screw Material Grade 300
Nut Material Stainless Steel
Lead Accuracy 0.003 in/ft
Nut Drag Torque 0.0211 to 0.0264 Nm
Percent Efficiency 24%
Left End Components None
Right End Components None
Nut Dynamic Load Capacity 703 N
Country of Origin United States
