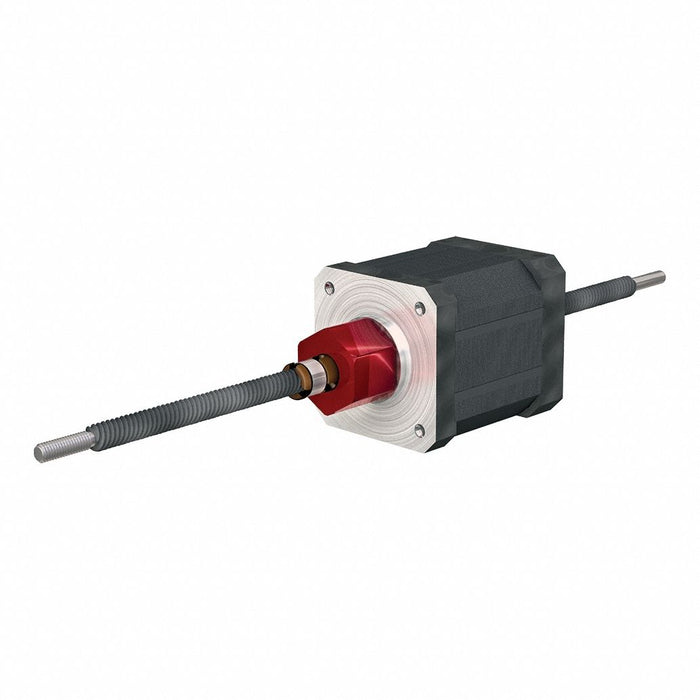

PBC Linear LSR1010T-0300-NCF231-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 23 Stepper Motor, 10 mm Screw Dia, 10 mm Lead, 300 mm Lg

PBC Linear LSR1010T-0300-NCF231-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 23 Stepper Motor, 10 mm Screw Dia, 10 mm Lead, 300 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$423.48 - $423.48
$423.48
$423.48 - $423.48
$423.48

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Insulation Class B, Screw Diameter 10 mm, Lead Length 10 mm, Screw Length 300 mm, Motor Length 57.0 mm, Rated Current 2.2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor

Travel per Step 0.050 mm
Lead Accuracy 0.003 in/ft
Phase 2
Motor Minimum Operating Temperature -20 Degrees C
Motor Type Stepper Motor
Winding Resistance 1.6 ohm
Nut Material Stainless Steel
Motor IP Rating IP40
Steps per Revolution 200
Frame NEMA 23
Rated Current 2.2 A
Screw Material Stainless Steel
Electrical Connection Plug-In Connector
Insulation Class B
Step Accuracy +/-5%
Insulation Resistance 100 Mohm
Screw Type Lead Screw
Screw Material Grade 300
Right End Components None
Assembly Type Non-Captive Lead Screw Assembly
Left End Components None
Nut Type Anti-Backlash
Coating Material PTFE
Percent Efficiency 78%
Thread Direction Right
Motor Maximum Operating Temperature 50 Degrees C
Country of Origin United States
