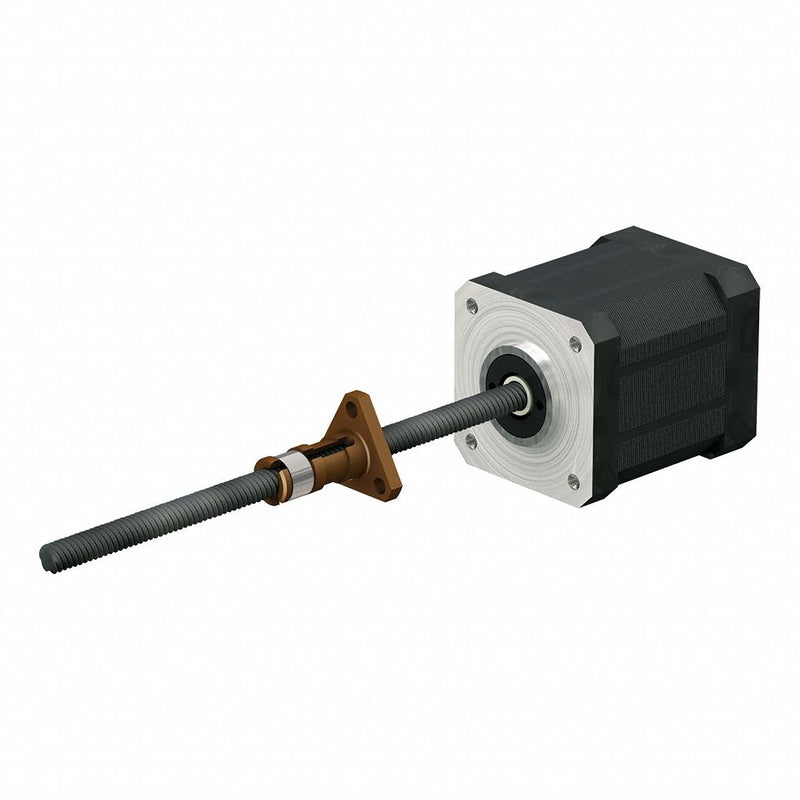

PBC Linear LSR1005T-0400-TCF-140-NNN-N Motorized Lead Screw Assembly, NEMA 14 Stepper Motor, 10 mm Screw Dia, 5 mm Lead, 400 mm Lg

PBC Linear LSR1005T-0400-TCF-140-NNN-N Motorized Lead Screw Assembly, NEMA 14 Stepper Motor, 10 mm Screw Dia, 5 mm Lead, 400 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.5 lbs

$456.98 - $456.98
$456.98
$456.98 - $456.98
$456.98

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Nut Shape Triangle, Insulation Class B, Screw Diameter 10 mm, Lead Length 5 mm, Screw Length 400 mm, Nut Length 38.1 mm, Nut Flange Diameter 38.1 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Nut Type Anti-Backlash
Nut Shape Triangle
Motor Minimum Operating Temperature -20 Degrees C
Travel per Step 0.025 mm
Right End Components None
Motor IP Rating IP40
Screw Type Lead Screw
Step Accuracy +/-5%
Rated Current 1.5 A
Coating Material PTFE
Frame NEMA 14
Nut Drag Torque 0.0197 to 0.0240 Nm
Nut Material Stainless Steel
Screw Material Stainless Steel
Insulation Class B
Insulation Resistance 100 Mohm
Percent Efficiency 66%
Assembly Type Lead Screw Assembly
Screw Material Grade 300
Steps per Revolution 200
Electrical Connection Plug-In Connector
Winding Resistance 1.61 ohm
Phase 2
Motor Type Stepper Motor
Lead Accuracy 0.003 in/ft
Motor Maximum Operating Temperature 50 Degrees C
Thread Direction Right
Left End Components None
Nut Dynamic Load Capacity 400 N
Country of Origin United States
