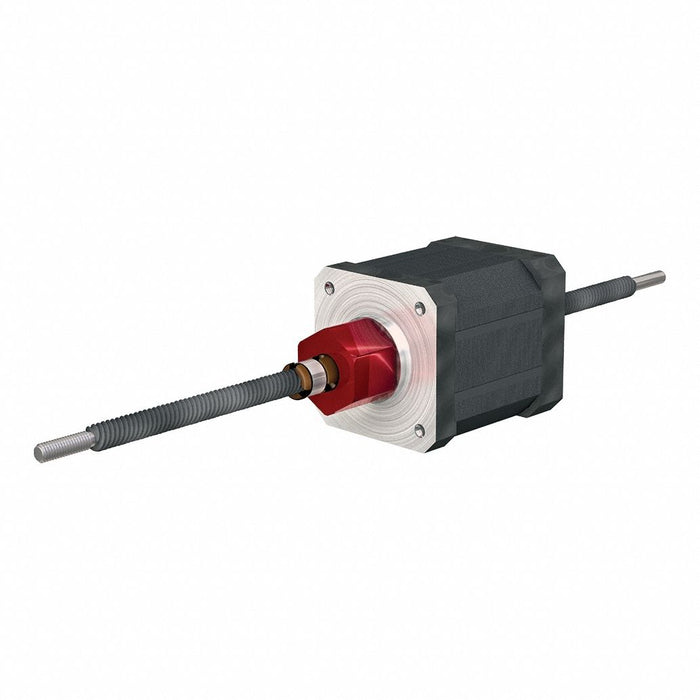

PBC Linear LSR1005T-0300-NCF231-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 23 Stepper Motor, 10 mm Screw Dia, 5 mm Lead, 300 mm Lg

PBC Linear LSR1005T-0300-NCF231-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 23 Stepper Motor, 10 mm Screw Dia, 5 mm Lead, 300 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.6 lbs

$423.48 - $423.48
$423.48
$423.48 - $423.48
$423.48

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Insulation Class B, Screw Diameter 10 mm, Lead Length 5 mm, Screw Length 300 mm, Motor Length 57.0 mm, Rated Current 2.2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor

Coating Material PTFE
Percent Efficiency 66%
Insulation Class B
Motor Type Stepper Motor
Phase 2
Screw Material Stainless Steel
Travel per Step 0.025 mm
Winding Resistance 1.6 ohm
Assembly Type Non-Captive Lead Screw Assembly
Insulation Resistance 100 Mohm
Steps per Revolution 200
Left End Components None
Screw Type Lead Screw
Nut Type Anti-Backlash
Thread Direction Right
Nut Material Stainless Steel
Motor Minimum Operating Temperature -20 Degrees C
Lead Accuracy 0.003 in/ft
Motor Maximum Operating Temperature 50 Degrees C
Screw Material Grade 300
Motor IP Rating IP40
Frame NEMA 23
Rated Current 2.2 A
Right End Components None
Step Accuracy +/-5%
Electrical Connection Plug-In Connector
Country of Origin United States
