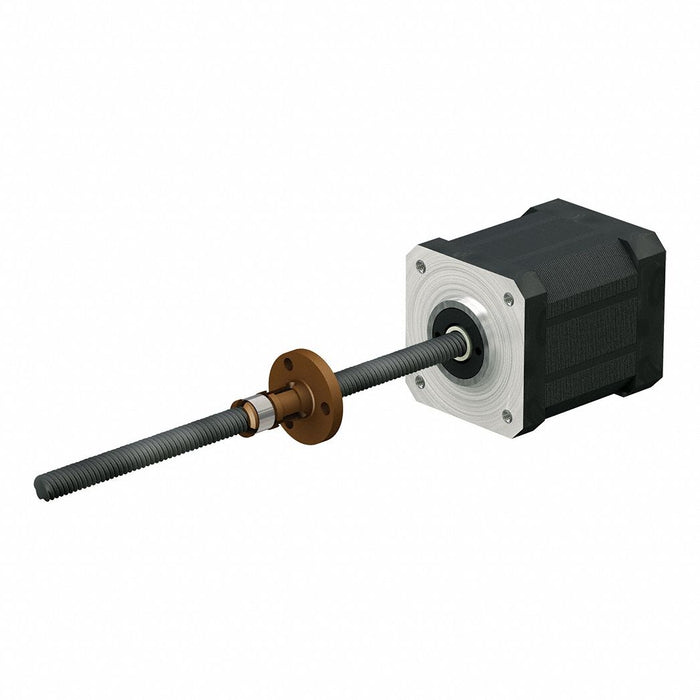

PBC Linear LSR1005T-0200-RCF-140-NNN-N Motorized Lead Screw Assembly, NEMA 14 Stepper Motor, 10 mm Screw Dia, 5 mm Lead, 200 mm Lg

PBC Linear LSR1005T-0200-RCF-140-NNN-N Motorized Lead Screw Assembly, NEMA 14 Stepper Motor, 10 mm Screw Dia, 5 mm Lead, 200 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.2 lbs

$382.91 - $382.91
$382.91
$382.91 - $382.91
$382.91

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Nut Shape Round, Insulation Class B, Screw Diameter 10 mm, Lead Length 5 mm, Screw Length 200 mm, Nut Length 38.1 mm, Nut Flange Diameter 38.1 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Frame NEMA 14
Step Accuracy +/-5%
Insulation Resistance 100 Mohm
Steps per Revolution 200
Nut Shape Round
Left End Components None
Travel per Step 0.025 mm
Motor Type Stepper Motor
Right End Components None
Percent Efficiency 66%
Phase 2
Rated Current 1.5 A
Winding Resistance 1.61 ohm
Motor Maximum Operating Temperature 50 Degrees C
Screw Material Stainless Steel
Insulation Class B
Electrical Connection Plug-In Connector
Screw Material Grade 300
Motor Minimum Operating Temperature -20 Degrees C
Assembly Type Lead Screw Assembly
Nut Type Anti-Backlash
Coating Material PTFE
Motor IP Rating IP40
Thread Direction Right
Nut Drag Torque 0.0197 to 0.0240 Nm
Screw Type Lead Screw
Lead Accuracy 0.003 in/ft
Nut Material Stainless Steel
Nut Dynamic Load Capacity 400 N
Country of Origin United States
