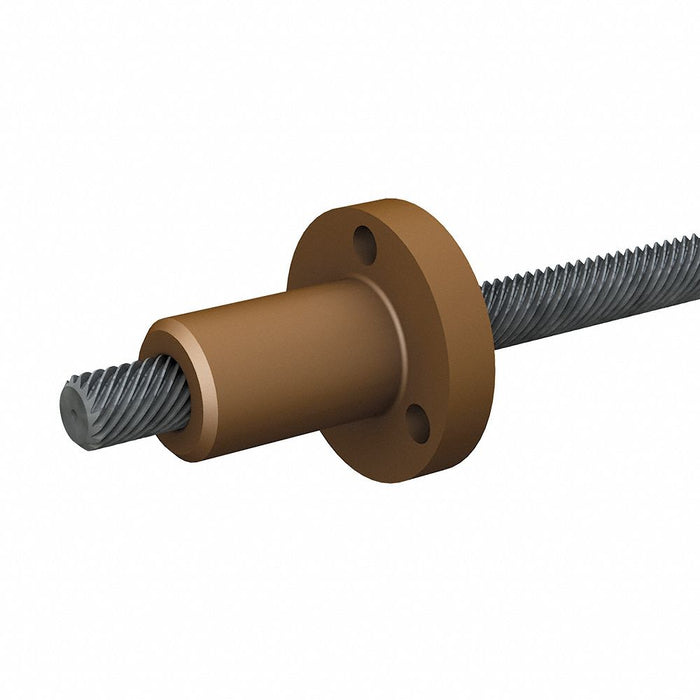

PBC Linear LSR1001T-0508-RS-NNN-NNN-N Precision Lead Screw, 10 mm Screw Dia, 1 mm Lead, 508 mm Lg, Standard Nut

PBC Linear LSR1001T-0508-RS-NNN-NNN-N Precision Lead Screw, 10 mm Screw Dia, 1 mm Lead, 508 mm Lg, Standard Nut

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.2 lbs

$202.53 - $202.53
$202.53
$202.53 - $202.53
$202.53

Precision Lead Screw, Nut Type Standard, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Nut Shape Round, Screw Diameter 10 mm, Lead Length 1 mm, Screw Length 508 mm, Nut Length 25.4 mm, Nut Flange Diameter 38.1 mm, Nut Dynamic Load Capacity 445 N, Assembly Type Lead Screw and Nut Assembly, Nut Bolt Circle Diameter 28.6 mm, Nut Diameter 15.9 mm, Nut Flange Thickness 4.8 mm

Thread Direction Right
Screw Type Lead Screw
Assembly Type Lead Screw and Nut Assembly
Nut Type Standard
Nut Shape Round
Coating Material PTFE
Screw Material Stainless Steel
Screw Material Grade 300
Nut Material Stainless Steel
Lead Accuracy 0.003 in/ft
Nut Drag Torque Free Wheeling
Percent Efficiency 28%
Left End Components None
Right End Components None
Nut Dynamic Load Capacity 445 N
Country of Origin United States
