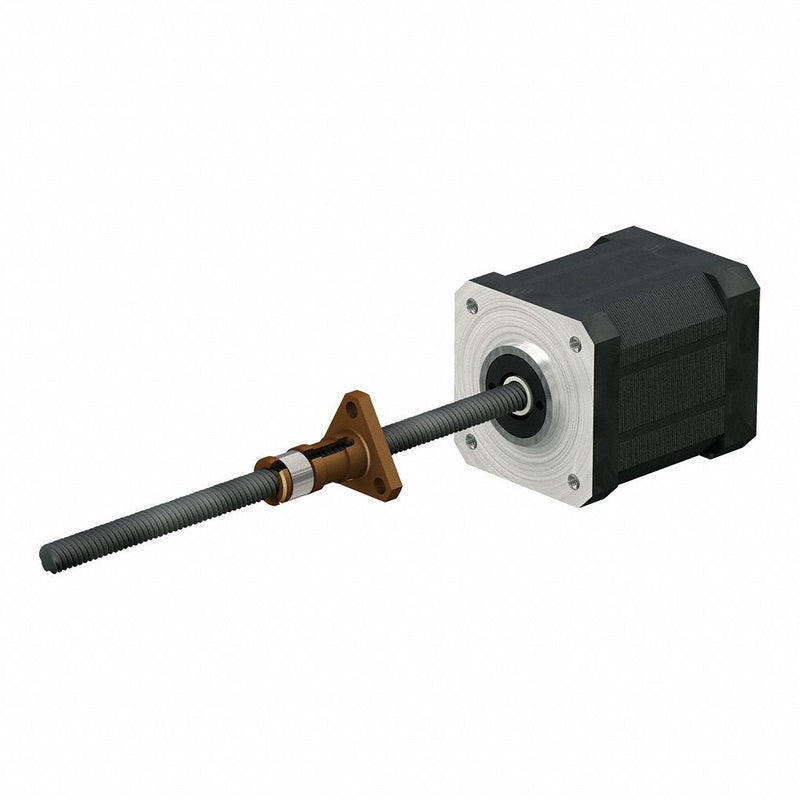

PBC Linear LSR1001T-0300-TCF-140-NNN-N Motorized Lead Screw Assembly, NEMA 14 Stepper Motor, 10 mm Screw Dia, 1 mm Lead, 300 mm Lg

PBC Linear LSR1001T-0300-TCF-140-NNN-N Motorized Lead Screw Assembly, NEMA 14 Stepper Motor, 10 mm Screw Dia, 1 mm Lead, 300 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.3 lbs

$419.81 - $419.81
$419.81
$419.81 - $419.81
$419.81

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Nut Shape Triangle, Insulation Class B, Screw Diameter 10 mm, Lead Length 1 mm, Screw Length 300 mm, Nut Length 38.1 mm, Nut Flange Diameter 38.1 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Percent Efficiency 28%
Assembly Type Lead Screw Assembly
Motor Type Stepper Motor
Step Accuracy +/-5%
Rated Current 1.5 A
Lead Accuracy 0.003 in/ft
Screw Material Stainless Steel
Left End Components None
Motor IP Rating IP40
Electrical Connection Plug-In Connector
Right End Components None
Phase 2
Motor Maximum Operating Temperature 50 Degrees C
Insulation Resistance 100 Mohm
Thread Direction Right
Winding Resistance 1.61 ohm
Motor Minimum Operating Temperature -20 Degrees C
Insulation Class B
Screw Type Lead Screw
Nut Type Anti-Backlash
Nut Material Stainless Steel
Steps per Revolution 200
Coating Material PTFE
Screw Material Grade 300
Frame NEMA 14
Nut Drag Torque 0.0197 to 0.0240 Nm
Nut Shape Triangle
Nut Dynamic Load Capacity 400 N
Country of Origin United States
