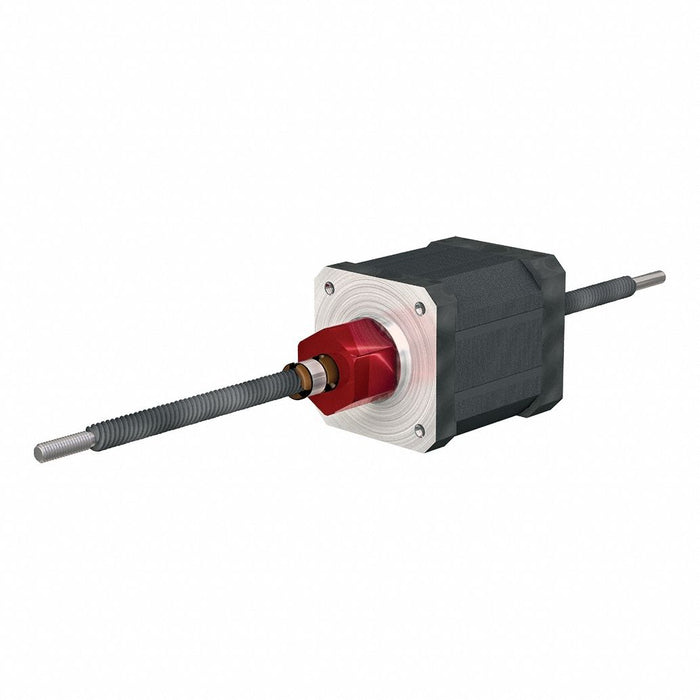

PBC Linear LSR1001T-0300-NCF231-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 23 Stepper Motor, 10 mm Screw Dia, 1 mm Lead, 300 mm Lg

PBC Linear LSR1001T-0300-NCF231-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 23 Stepper Motor, 10 mm Screw Dia, 1 mm Lead, 300 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.6 lbs

$423.48 - $423.48
$423.48
$423.48 - $423.48
$423.48

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 23, Insulation Class B, Screw Diameter 10 mm, Lead Length 1 mm, Screw Length 300 mm, Motor Length 57.0 mm, Rated Current 2.2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor

Step Accuracy +/-5%
Left End Components None
Motor Type Stepper Motor
Lead Accuracy 0.003 in/ft
Rated Current 2.2 A
Right End Components None
Insulation Class B
Thread Direction Right
Percent Efficiency 28%
Phase 2
Assembly Type Non-Captive Lead Screw Assembly
Electrical Connection Plug-In Connector
Coating Material PTFE
Steps per Revolution 200
Insulation Resistance 100 Mohm
Screw Material Stainless Steel
Frame NEMA 23
Nut Material Stainless Steel
Nut Type Anti-Backlash
Motor Maximum Operating Temperature 50 Degrees C
Winding Resistance 1.6 ohm
Travel per Step 0.005 mm
Motor IP Rating IP40
Screw Material Grade 300
Motor Minimum Operating Temperature -20 Degrees C
Screw Type Lead Screw
Country of Origin United States
