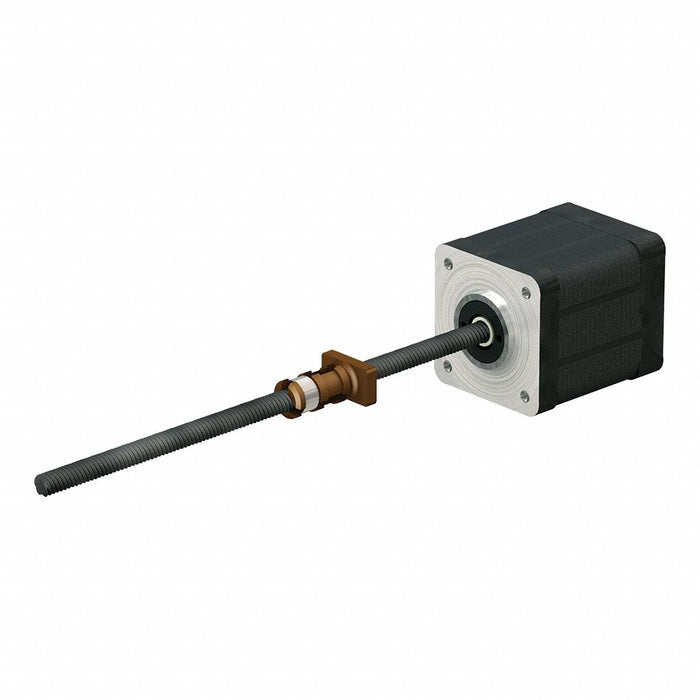

PBC Linear LSR0605T-0300-VCF-111-NNN-N Motorized Lead Screw Assembly, NEMA 11 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 300 mm Lg

PBC Linear LSR0605T-0300-VCF-111-NNN-N Motorized Lead Screw Assembly, NEMA 11 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 300 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$454.10 - $454.10
$454.10
$454.10 - $454.10
$454.10

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 11, Nut Shape Rectangle, Insulation Class B, Screw Diameter 6 mm, Lead Length 5 mm, Screw Length 300 mm, Nut Length 22.2 mm, Nut Flange Diameter 17.8 mm, Motor Length 41.0 mm, Rated Current 1 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Nut Drag Torque 0.0134 to 0.0164 Nm
Motor Maximum Operating Temperature 50 Degrees C
Winding Resistance 2.7 ohm
Rated Current 1 A
Screw Material Stainless Steel
Nut Shape Rectangle
Nut Material Stainless Steel
Step Accuracy +/-5%
Frame NEMA 11
Nut Type Anti-Backlash
Motor IP Rating IP40
Thread Direction Right
Percent Efficiency 76%
Screw Material Grade 300
Screw Type Lead Screw
Insulation Resistance 100 Mohm
Motor Type Stepper Motor
Steps per Revolution 200
Insulation Class B
Travel per Step 0.025 mm
Electrical Connection Plug-In Connector
Left End Components None
Phase 2
Lead Accuracy 0.003 in/ft
Motor Minimum Operating Temperature -20 Degrees C
Right End Components None
Assembly Type Lead Screw Assembly
Coating Material PTFE
Nut Dynamic Load Capacity 302 N
Country of Origin United States
