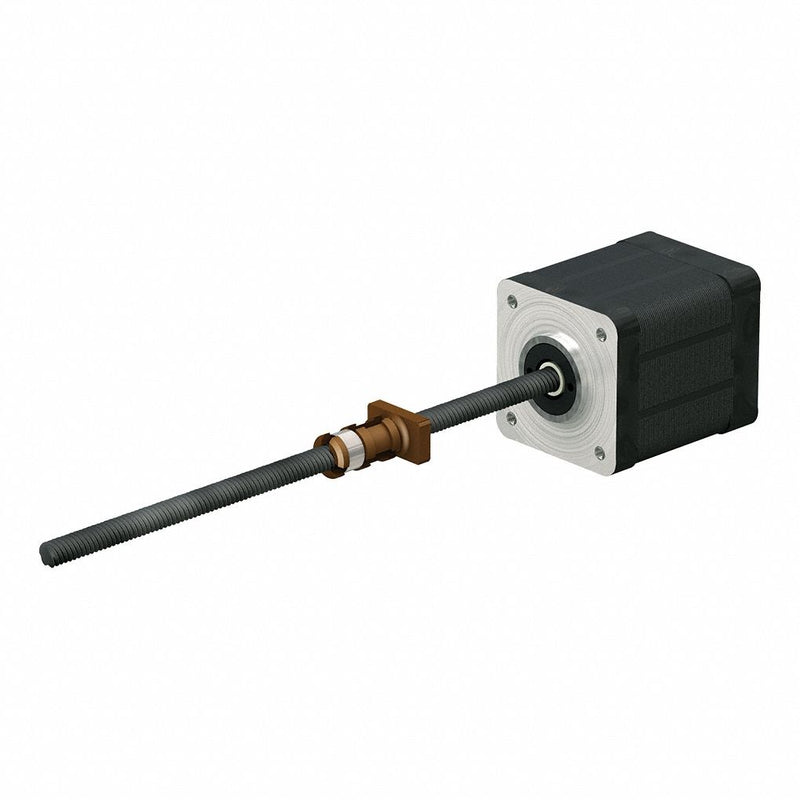

PBC Linear LSR0605T-0250-VCF-111-NNN-N Motorized Lead Screw Assembly, NEMA 11 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 250 mm Lg

PBC Linear LSR0605T-0250-VCF-111-NNN-N Motorized Lead Screw Assembly, NEMA 11 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 250 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$435.51 - $435.51
$435.51
$435.51 - $435.51
$435.51

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 11, Nut Shape Rectangle, Insulation Class B, Screw Diameter 6 mm, Lead Length 5 mm, Screw Length 250 mm, Nut Length 22.2 mm, Nut Flange Diameter 17.8 mm, Motor Length 41.0 mm, Rated Current 1 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Screw Type Lead Screw
Coating Material PTFE
Nut Shape Rectangle
Phase 2
Steps per Revolution 200
Nut Drag Torque 0.0134 to 0.0164 Nm
Step Accuracy +/-5%
Motor IP Rating IP40
Left End Components None
Rated Current 1 A
Nut Material Stainless Steel
Winding Resistance 2.7 ohm
Percent Efficiency 76%
Frame NEMA 11
Motor Type Stepper Motor
Thread Direction Right
Motor Maximum Operating Temperature 50 Degrees C
Nut Type Anti-Backlash
Right End Components None
Insulation Class B
Travel per Step 0.025 mm
Screw Material Stainless Steel
Lead Accuracy 0.003 in/ft
Electrical Connection Plug-In Connector
Insulation Resistance 100 Mohm
Assembly Type Lead Screw Assembly
Screw Material Grade 300
Motor Minimum Operating Temperature -20 Degrees C
Nut Dynamic Load Capacity 302 N
Country of Origin United States
