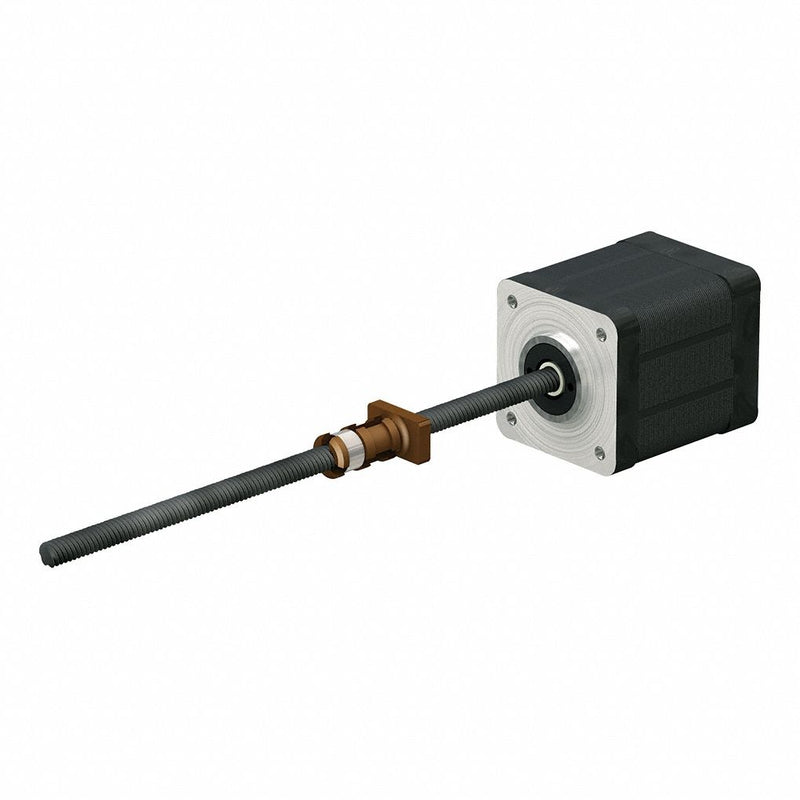

PBC Linear LSR0605T-0250-VCF-080-NNN-N Motorized Lead Screw Assembly, NEMA 8 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 250 mm Lg

PBC Linear LSR0605T-0250-VCF-080-NNN-N Motorized Lead Screw Assembly, NEMA 8 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 250 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$467.19 - $467.19
$467.19
$467.19 - $467.19
$467.19

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 8, Nut Shape Rectangle, Insulation Class B, Screw Diameter 6 mm, Lead Length 5 mm, Screw Length 250 mm, Nut Length 22.2 mm, Nut Flange Diameter 17.8 mm, Motor Length 29.5 mm, Rated Current 0.4 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Screw Material Stainless Steel
Travel per Step 0.025 mm
Nut Type Anti-Backlash
Motor IP Rating IP40
Thread Direction Right
Left End Components None
Insulation Class B
Percent Efficiency 76%
Rated Current 0.4 A
Motor Minimum Operating Temperature -20 Degrees C
Winding Resistance 13.9 ohm
Nut Drag Torque 0.0134 to 0.0164 Nm
Motor Maximum Operating Temperature 50 Degrees C
Phase 2
Lead Accuracy 0.003 in/ft
Frame NEMA 8
Steps per Revolution 200
Motor Type Stepper Motor
Right End Components None
Coating Material PTFE
Step Accuracy +/-5%
Nut Material Stainless Steel
Insulation Resistance 100 Mohm
Assembly Type Lead Screw Assembly
Nut Shape Rectangle
Electrical Connection Plug-In Connector
Screw Material Grade 300
Screw Type Lead Screw
Nut Dynamic Load Capacity 302 N
Country of Origin United States
