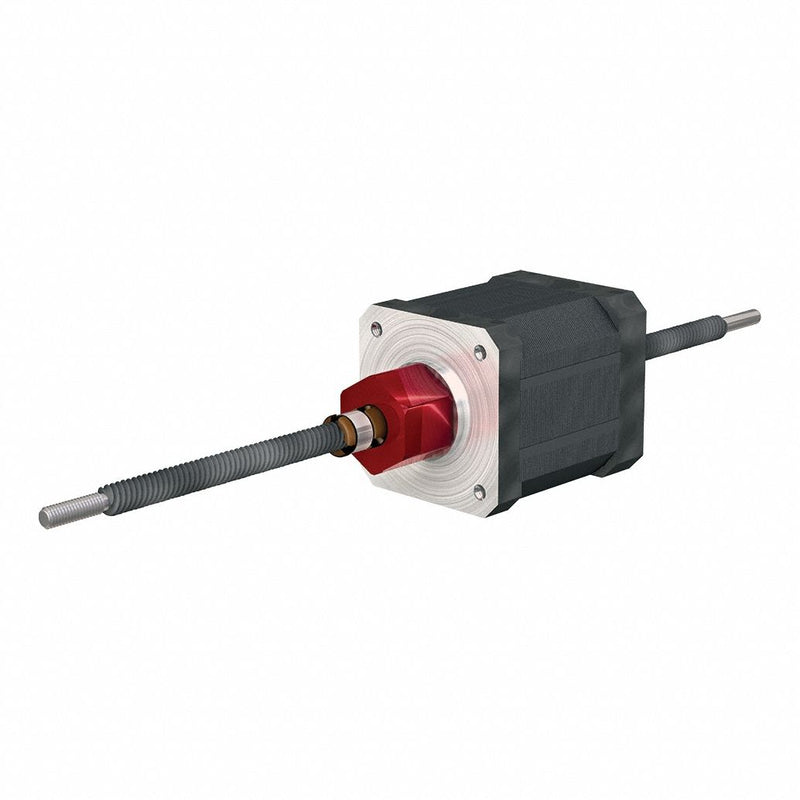

PBC Linear LSR0605T-0250-NCF171-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 17 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 250 mm Lg

PBC Linear LSR0605T-0250-NCF171-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 17 Stepper Motor, 6 mm Screw Dia, 5 mm Lead, 250 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.6 lbs

$347.04 - $347.04
$347.04
$347.04 - $347.04
$347.04

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 17, Insulation Class B, Screw Diameter 6 mm, Lead Length 5 mm, Screw Length 250 mm, Motor Length 39.8 mm, Rated Current 2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor

Step Accuracy +/-5%
Motor Minimum Operating Temperature -20 Degrees C
Assembly Type Non-Captive Lead Screw Assembly
Screw Material Stainless Steel
Insulation Class B
Screw Material Grade 300
Travel per Step 0.125 mm
Nut Type Anti-Backlash
Rated Current 2 A
Phase 2
Frame NEMA 17
Electrical Connection Plug-In Connector
Lead Accuracy 0.003 in/ft
Percent Efficiency 76%
Screw Type Lead Screw
Nut Material Stainless Steel
Motor Maximum Operating Temperature 50 Degrees C
Thread Direction Right
Steps per Revolution 200
Motor Type Stepper Motor
Coating Material PTFE
Motor IP Rating IP40
Winding Resistance 1.04 ohm
Insulation Resistance 100 Mohm
Country of Origin United States
