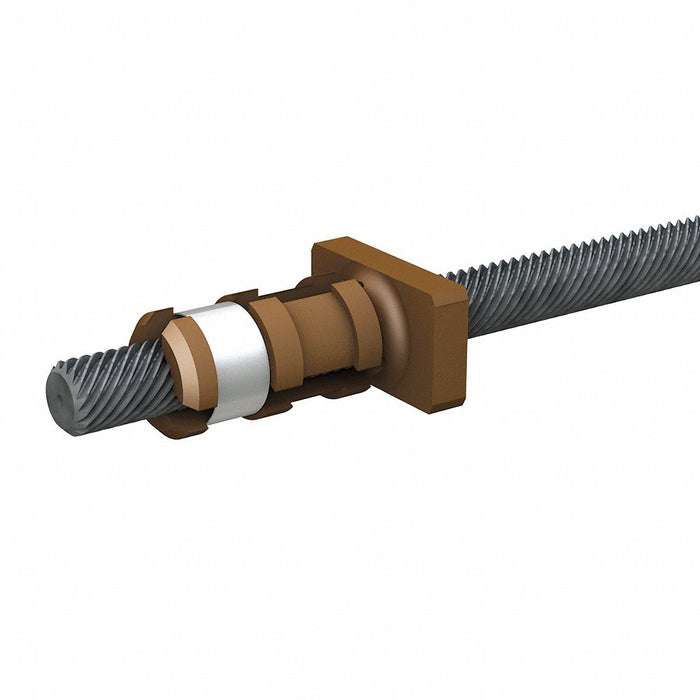

PBC Linear LSR0604T-0254-VCF-NNN-NNN-N Precision Lead Screw, 6 mm Screw Dia, 4 mm Lead, 254 mm Lg, Anti-Backlash Nut

PBC Linear LSR0604T-0254-VCF-NNN-NNN-N Precision Lead Screw, 6 mm Screw Dia, 4 mm Lead, 254 mm Lg, Anti-Backlash Nut

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$130.45 - $130.45
$130.45
$130.45 - $130.45
$130.45

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Nut Shape Rectangle, Screw Diameter 6 mm, Lead Length 4 mm, Screw Length 254 mm, Nut Length 22.2 mm, Nut Flange Diameter 17.8 mm, Nut Dynamic Load Capacity 302 N, Assembly Type Lead Screw and Nut Assembly, Nut Diameter 10.2 mm, Nut Flange Thickness 3.4 mm

Thread Direction Right
Screw Type Lead Screw
Assembly Type Lead Screw and Nut Assembly
Nut Type Anti-Backlash
Nut Shape Rectangle
Coating Material PTFE
Screw Material Stainless Steel
Screw Material Grade 300
Nut Material Stainless Steel
Lead Accuracy 0.003 in/ft
Nut Drag Torque 0.0134 to 0.0164 Nm
Percent Efficiency 71%
Left End Components None
Right End Components None
Nut Dynamic Load Capacity 302 N
Country of Origin United States
