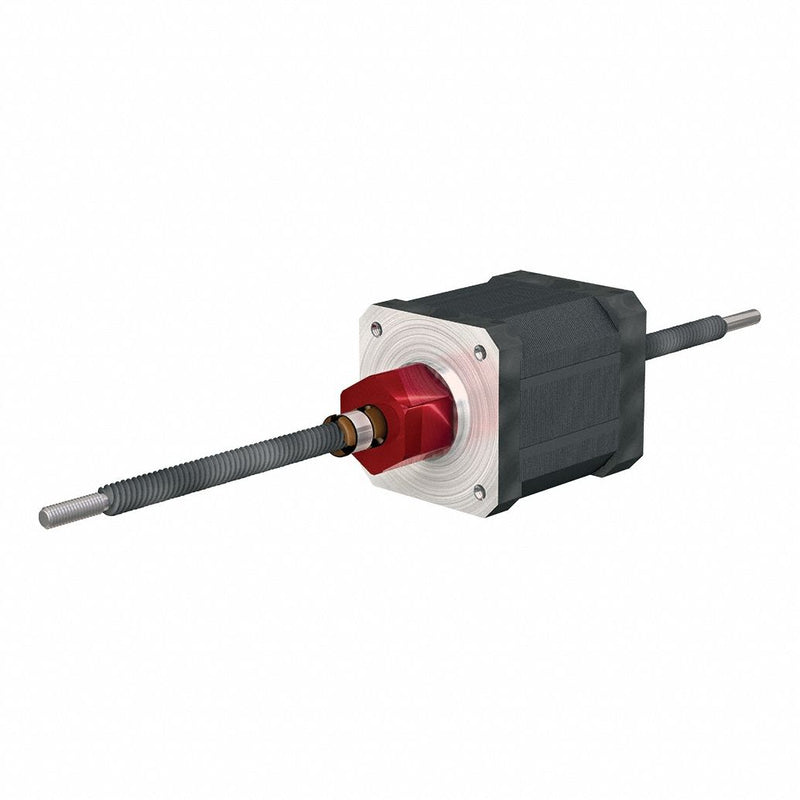

PBC Linear LSR0602T-0250-NCF171-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 17 Stepper Motor, 6 mm Screw Dia, 2 mm Lead, 250 mm Lg

PBC Linear LSR0602T-0250-NCF171-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 17 Stepper Motor, 6 mm Screw Dia, 2 mm Lead, 250 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$347.04 - $347.04
$347.04
$347.04 - $347.04
$347.04

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 17, Insulation Class B, Screw Diameter 6 mm, Lead Length 2 mm, Screw Length 250 mm, Motor Length 39.8 mm, Rated Current 2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor

Screw Diameter 6 mm
Screw Length 250 mm
Lead Length 2 mm
Motor Size NEMA 17
Motor Length 39.8 mm
Screw Type Lead Screw
Travel per Step 0.060 mm
Insulation Resistance 100 Mohm
Assembly Type Non-Captive Lead Screw Assembly
Nut Type Anti-Backlash
Motor Type Stepper Motor
Phase 2
Coating Material PTFE
Thread Direction Right
Nut Material Stainless Steel
Step Accuracy +/-5%
Screw Material Stainless Steel
Motor Minimum Operating Temperature -20 Degrees C
Motor Maximum Operating Temperature 50 Degrees C
Lead Accuracy 0.003 in/ft
Rated Current 2 A
Percent Efficiency 60%
Electrical Connection Plug-In Connector
Insulation Class B
Steps per Revolution 200
Motor IP Rating IP40
Winding Resistance 1.04 ohm
Country of Origin United States
