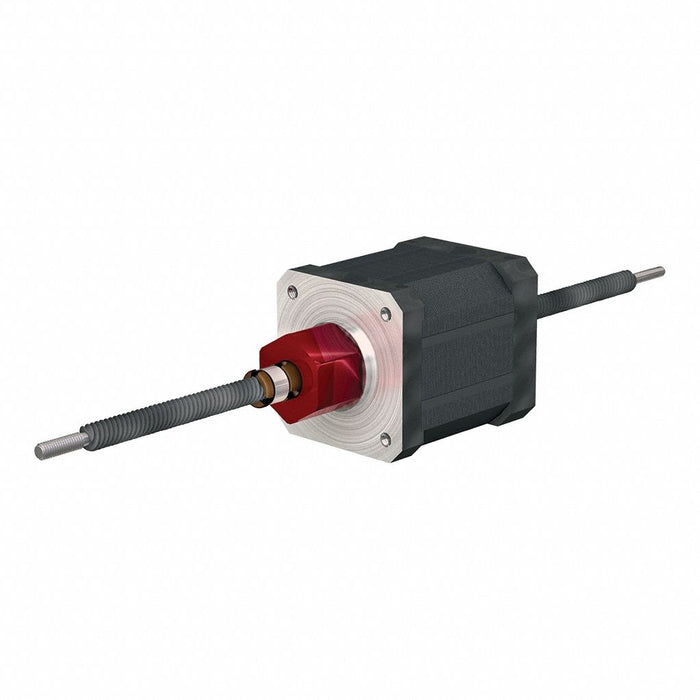

PBC Linear LSR0602T-0200-NCF141-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 14 Stepper Motor, 6 mm Screw Dia, 2 mm Lead, 200 mm Lg

PBC Linear LSR0602T-0200-NCF141-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 14 Stepper Motor, 6 mm Screw Dia, 2 mm Lead, 200 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$371.13 - $371.13
$371.13
$371.13 - $371.13
$371.13

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Insulation Class B, Screw Diameter 6 mm, Lead Length 2 mm, Screw Length 200 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor

Percent Efficiency 76%
Frame NEMA 14
Motor Type Stepper Motor
Step Accuracy +/-5%
Rated Current 1.5 A
Travel per Step 0.020 mm
Electrical Connection Plug-In Connector
Motor IP Rating IP40
Winding Resistance 1.61 ohm
Steps per Revolution 200
Coating Material PTFE
Screw Material Stainless Steel
Motor Maximum Operating Temperature 50 Degrees C
Motor Minimum Operating Temperature -20 Degrees C
Insulation Resistance 100 Mohm
Screw Material Grade 300
Thread Direction Right
Lead Accuracy 0.003 in/ft
Nut Type Anti-Backlash
Insulation Class B
Phase 2
Nut Material Stainless Steel
Country of Origin United States
