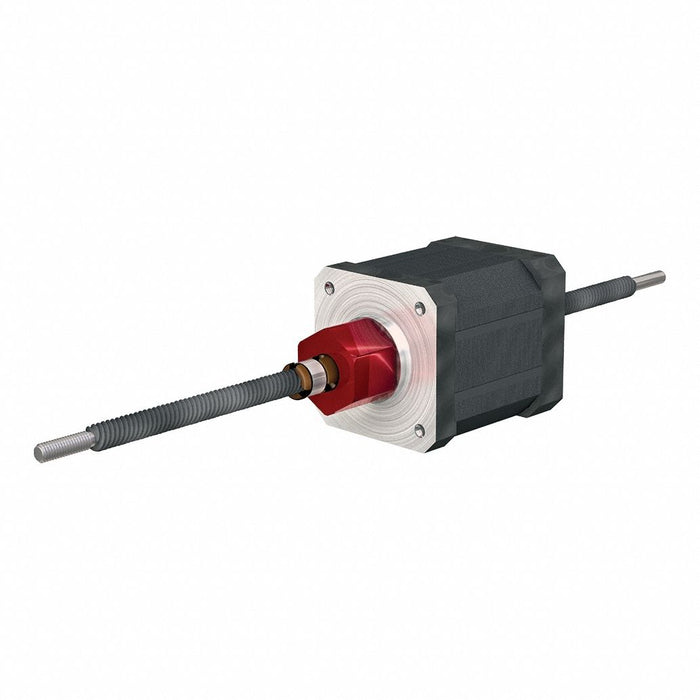

PBC Linear LSR0601T-0250-NCF171-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 17 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 250 mm Lg

PBC Linear LSR0601T-0250-NCF171-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 17 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 250 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$348.52 - $348.52
$348.52
$348.52 - $348.52
$348.52

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 17, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 250 mm, Motor Length 39.8 mm, Rated Current 2 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor

Percent Efficiency 39%
Motor IP Rating IP40
Travel per Step 0.050 mm
Thread Direction Right
Winding Resistance 1.04 ohm
Motor Type Stepper Motor
Nut Type Anti-Backlash
Insulation Resistance 100 Mohm
Left End Components None
Insulation Class B
Coating Material PTFE
Nut Material Stainless Steel
Motor Minimum Operating Temperature -20 Degrees C
Assembly Type Non-Captive Lead Screw Assembly
Frame NEMA 17
Screw Material Grade 300
Phase 2
Step Accuracy +/-5%
Right End Components None
Electrical Connection Plug-In Connector
Rated Current 2 A
Motor Maximum Operating Temperature 50 Degrees C
Steps per Revolution 200
Lead Accuracy 0.003 in/ft
Screw Material Stainless Steel
Screw Type Lead Screw
Country of Origin United States
