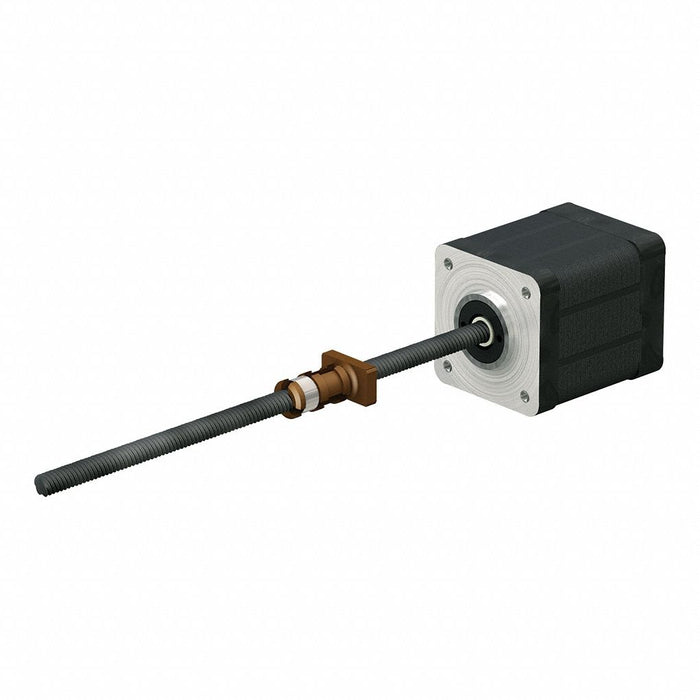

PBC Linear LSR0601T-0200-VCF-080-NNN-N Motorized Lead Screw Assembly, NEMA 8 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 200 mm Lg

PBC Linear LSR0601T-0200-VCF-080-NNN-N Motorized Lead Screw Assembly, NEMA 8 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 200 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$448.61 - $448.61
$448.61
$448.61 - $448.61
$448.61

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 8, Nut Shape Rectangle, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 200 mm, Nut Length 22.2 mm, Nut Flange Diameter 17.8 mm, Motor Length 29.5 mm, Rated Current 0.4 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Nut Drag Torque 0.0134 to 0.0164 Nm
Thread Direction Right
Phase 2
Screw Material Grade 300
Coating Material PTFE
Screw Material Stainless Steel
Electrical Connection Plug-In Connector
Motor IP Rating IP40
Assembly Type Lead Screw Assembly
Rated Current 0.4 A
Step Accuracy +/-5%
Insulation Class B
Motor Minimum Operating Temperature -20 Degrees C
Motor Maximum Operating Temperature 50 Degrees C
Nut Shape Rectangle
Screw Type Lead Screw
Right End Components None
Travel per Step 0.005 in
Motor Type Stepper Motor
Nut Material Stainless Steel
Steps per Revolution 200
Frame NEMA 8
Lead Accuracy 0.003 in/ft
Insulation Resistance 100 Mohm
Nut Type Anti-Backlash
Winding Resistance 13.9 ohm
Left End Components None
Percent Efficiency 39%
Nut Dynamic Load Capacity 302 N
Country of Origin United States
