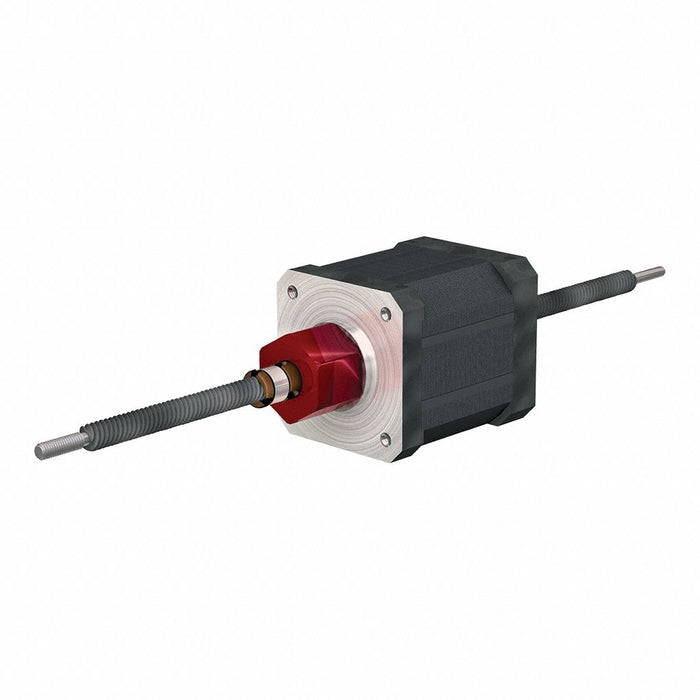

PBC Linear LSR0601T-0200-NCF141-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 14 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 200 mm Lg

PBC Linear LSR0601T-0200-NCF141-NNN-NNN Motorized Non-Captive Lead Screw, NEMA 14 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 200 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$371.13 - $371.13
$371.13
$371.13 - $371.13
$371.13

Non-Captive Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 14, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 200 mm, Motor Length 36.0 mm, Rated Current 1.5 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C, Assembly Type Non-Captive Lead Screw Assembly, Motor Type Stepper Motor

Right End Components None
Assembly Type Non-Captive Lead Screw Assembly
Rated Current 1.5 A
Thread Direction Right
Travel per Step 0.010 mm
Motor Maximum Operating Temperature 50 Degrees C
Percent Efficiency 39%
Nut Type Anti-Backlash
Motor Minimum Operating Temperature -20 Degrees C
Screw Material Stainless Steel
Nut Material Stainless Steel
Insulation Class B
Insulation Resistance 100 Mohm
Motor IP Rating IP40
Phase 2
Coating Material PTFE
Frame NEMA 14
Winding Resistance 1.61 ohm
Lead Accuracy 0.003 in/ft
Screw Material Grade 300
Electrical Connection Plug-In Connector
Motor Type Stepper Motor
Steps per Revolution 200
Screw Type Lead Screw
Left End Components None
Step Accuracy +/-5%
Country of Origin United States
