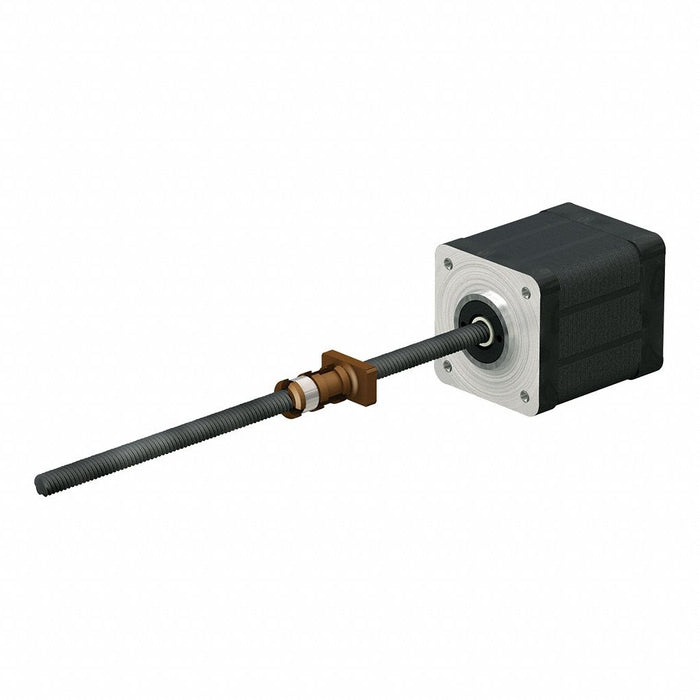

PBC Linear LSR0601T-0100-VCF-111-NNN-N Motorized Lead Screw Assembly, NEMA 11 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 100 mm Lg

PBC Linear LSR0601T-0100-VCF-111-NNN-N Motorized Lead Screw Assembly, NEMA 11 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 100 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$380.02 - $380.02
$380.02
$380.02 - $380.02
$380.02

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 11, Nut Shape Rectangle, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 100 mm, Nut Length 22.2 mm, Nut Flange Diameter 17.8 mm, Motor Length 41.0 mm, Rated Current 1 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Nut Type Anti-Backlash
Nut Drag Torque 0.0134 to 0.0164 Nm
Percent Efficiency 39%
Travel per Step 0.005 in
Insulation Class B
Screw Material Grade 300
Step Accuracy +/-5%
Motor IP Rating IP40
Lead Accuracy 0.003 in/ft
Motor Minimum Operating Temperature -20 Degrees C
Nut Material Stainless Steel
Nut Shape Rectangle
Phase 2
Left End Components None
Electrical Connection Plug-In Connector
Insulation Resistance 100 Mohm
Assembly Type Lead Screw Assembly
Coating Material PTFE
Motor Type Stepper Motor
Thread Direction Right
Screw Material Stainless Steel
Steps per Revolution 200
Motor Maximum Operating Temperature 50 Degrees C
Rated Current 1 A
Screw Type Lead Screw
Winding Resistance 2.7 ohm
Frame NEMA 11
Right End Components None
Nut Dynamic Load Capacity 302 N
Country of Origin United States
