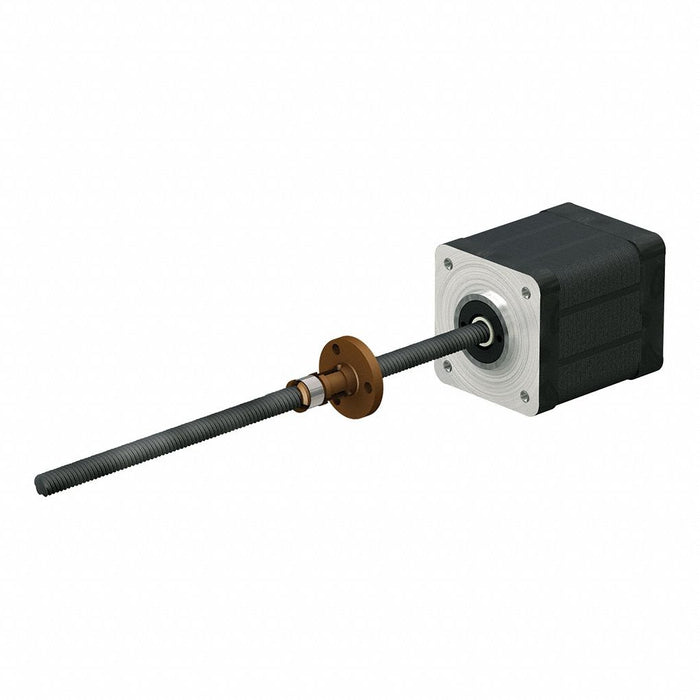

PBC Linear LSR0601T-0100-RCF-080-NNN-N Motorized Lead Screw Assembly, NEMA 8 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 100 mm Lg

PBC Linear LSR0601T-0100-RCF-080-NNN-N Motorized Lead Screw Assembly, NEMA 8 Stepper Motor, 6 mm Screw Dia, 1 mm Lead, 100 mm Lg

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1 lbs

$411.69 - $411.69
$411.69
$411.69 - $411.69
$411.69

Precision Lead Screw, Nut Type Anti-Backlash, Coating Material PTFE, Screw Material Stainless Steel, Screw Material Grade 300, Frame NEMA 8, Nut Shape Round, Insulation Class B, Screw Diameter 6 mm, Lead Length 1 mm, Screw Length 100 mm, Nut Length 22.2 mm, Nut Flange Diameter 25.4 mm, Motor Length 29.5 mm, Rated Current 0.4 A, Steps per Revolution 200, Motor IP Rating IP40, Phase 2, Motor Maximum Operating Temperature 50 Degrees C, Motor Minimum Operating Temperature -20 Degrees C

Left End Components None
Nut Material Stainless Steel
Screw Material Stainless Steel
Coating Material PTFE
Nut Type Anti-Backlash
Lead Accuracy 0.003 in/ft
Percent Efficiency 39%
Screw Type Lead Screw
Nut Shape Round
Insulation Resistance 100 Mohm
Nut Drag Torque 0.0134 to 0.0164 Nm
Travel per Step 0.005 in
Motor Type Stepper Motor
Step Accuracy +/-5%
Insulation Class B
Rated Current 0.4 A
Thread Direction Right
Winding Resistance 13.9 ohm
Assembly Type Lead Screw Assembly
Motor Maximum Operating Temperature 50 Degrees C
Motor IP Rating IP40
Steps per Revolution 200
Electrical Connection Plug-In Connector
Phase 2
Right End Components None
Screw Material Grade 300
Motor Minimum Operating Temperature -20 Degrees C
Frame NEMA 8
Nut Dynamic Load Capacity 302 N
Country of Origin United States
