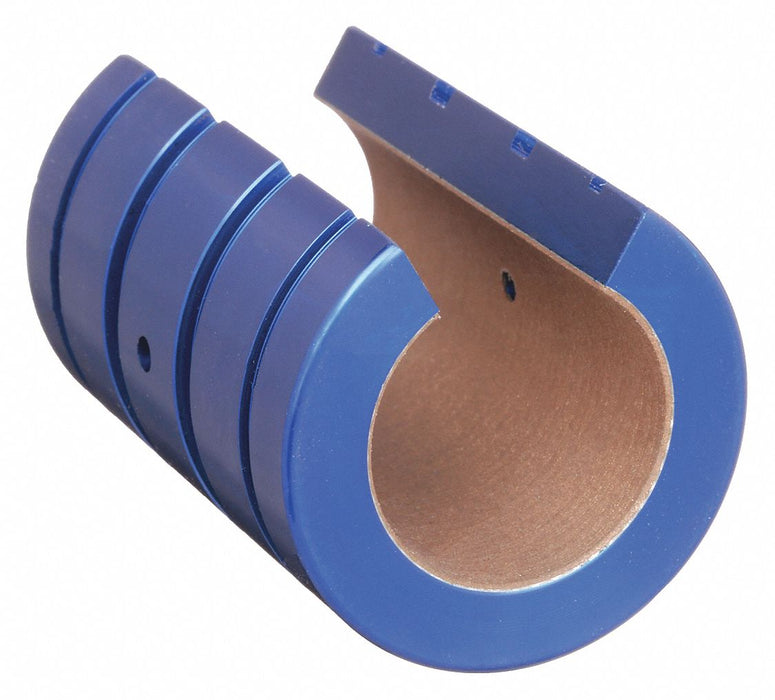

PBC Linear FMN30 Standard Linear Bearing, 30 mm Inside Dia, 68 mm Lg, Frelon Gold, Precision

PBC Linear FMN30 Standard Linear Bearing, 30 mm Inside Dia, 68 mm Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.25 lbs

$182.04 - $182.04
$182.04
$182.04 - $182.04
$182.04

Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 30 mm, Outside Diameter 46.99 mm, Overall Length 68 mm, Static Load Capacity 42,026 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FMN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.009/+0.096 mm, Maximum PV 20,000 lb/sq in-fpm

Type Open
Material Aluminum
Temp. Range 0 Degrees to 400 Degrees F
Max. Pv 20,000 lb/sq in-fpm
For Use With Support and Feather Rails
Static Load Capacity 42,026 N
Between Grooves (mm) 48
Liner Frelon(TM) Gold
Self-Alignment Yes
Slot Angle (Degrees) 72
Color Blue
Lubrication Self Lubricating
Bearing Type Open
Accelerated Speed 14 Feet/Second
Series FMN
Running Clearance Class Precision
Minimum Operating Temperature -400 Degrees F
Static Load Capacity (N) 4,284 lbf
Maximum Operating Temperature 400 Degrees F
System of Measurement Metric
Self-Lubrication Self-Lubricating
Between Grooves 15 mm
Slot Angle 72 Degrees
Maximum PV 20,000 lb/sq in-fpm
Country of Origin United States
