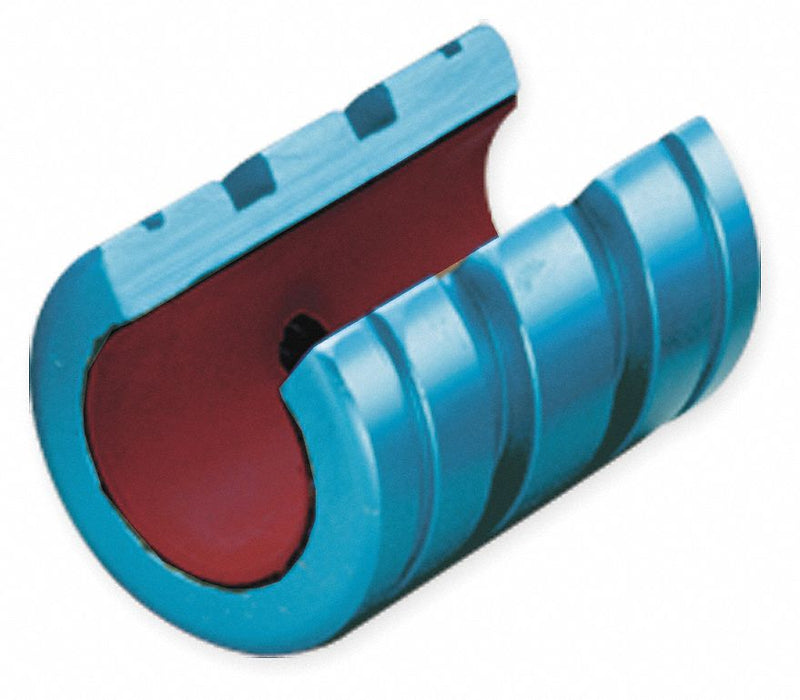

PBC Linear FMN08 Standard Linear Bearing, 8 mm Inside Dia, 25 mm Lg, Frelon Gold, Precision

PBC Linear FMN08 Standard Linear Bearing, 8 mm Inside Dia, 25 mm Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.05 lbs

$94.53 - $94.53
$94.53
$94.53 - $94.53
$94.53

Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 8 mm, Outside Diameter 15.99 mm, Overall Length 25 mm, Static Load Capacity 4,120 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FMN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.085/+0.063 mm, Maximum PV 20,000 lb/sq in-fpm

Type Open
Material Aluminum
Temp. Range 0 Degrees to 400 Degrees F
Max. Pv 20,000 lb/sq in-fpm
For Use With Support and Feather Rails
Static Load Capacity 4,120 N
Between Grooves (mm) 14
Liner Frelon(TM) Gold
Self-Alignment Yes
Slot Angle (Degrees) 60
Color Blue
Lubrication Self Lubricating
Bearing Type Open
Accelerated Speed 14 Feet/Second
Series FMN
Running Clearance Class Precision
Minimum Operating Temperature -400 Degrees F
Static Load Capacity (N) 420 lbf
Maximum Operating Temperature 400 Degrees F
System of Measurement Metric
Self-Lubrication Self-Lubricating
Between Grooves 5.33 mm
Slot Angle 60 Degrees
Maximum PV 20,000 lb/sq in-fpm
Country of Origin United States
