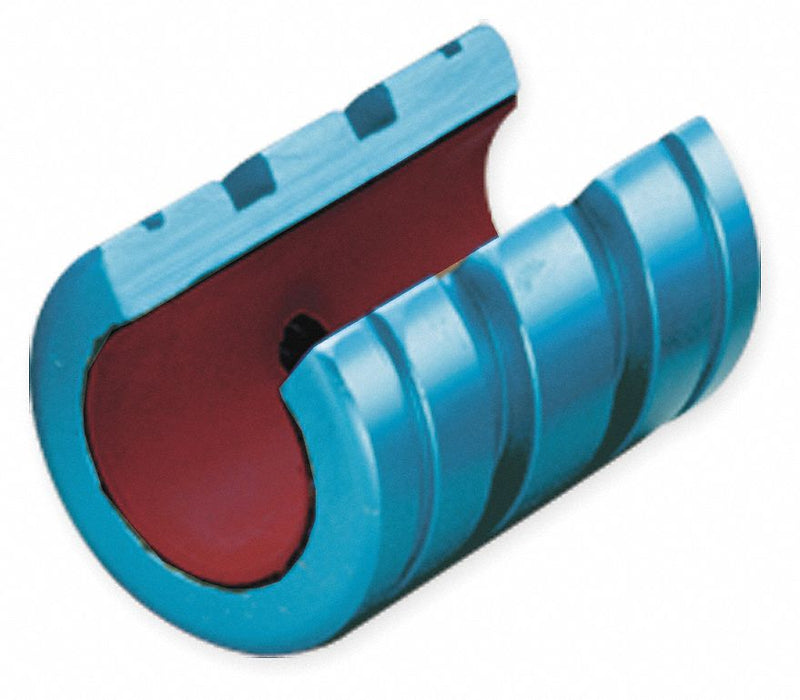

PBC Linear FMN05 Standard Linear Bearing, 5 mm Inside Dia, 22 mm Lg, Frelon Gold, Precision

PBC Linear FMN05 Standard Linear Bearing, 5 mm Inside Dia, 22 mm Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.05 lbs

$93.50 - $93.50
$93.50
$93.50 - $93.50
$93.50

Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 5 mm, Outside Diameter 11.99 mm, Overall Length 22 mm, Static Load Capacity 2,276 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FMN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.008/+0.06 mm, Maximum PV 20,000 lb/sq in-fpm

Type Open
Material Aluminum
Temp. Range 0 Degrees to 400 Degrees F
Max. Pv 20,000 lb/sq in-fpm
For Use With Support and Feather Rails
Static Load Capacity 2,276 N
Between Grooves (mm) 12
Liner Frelon(TM) Gold
Self-Alignment Yes
Slot Angle (Degrees) 60
Color Blue
Lubrication Self Lubricating
Bearing Type Open
Accelerated Speed 14 Feet/Second
Series FMN
Running Clearance Class Precision
Minimum Operating Temperature -400 Degrees F
Static Load Capacity (N) 232 lbf
Maximum Operating Temperature 400 Degrees F
System of Measurement Metric
Self-Lubrication Self-Lubricating
Between Grooves 5 mm
Slot Angle 60 Degrees
Maximum PV 20,000 lb/sq in-fpm
Country of Origin United States
