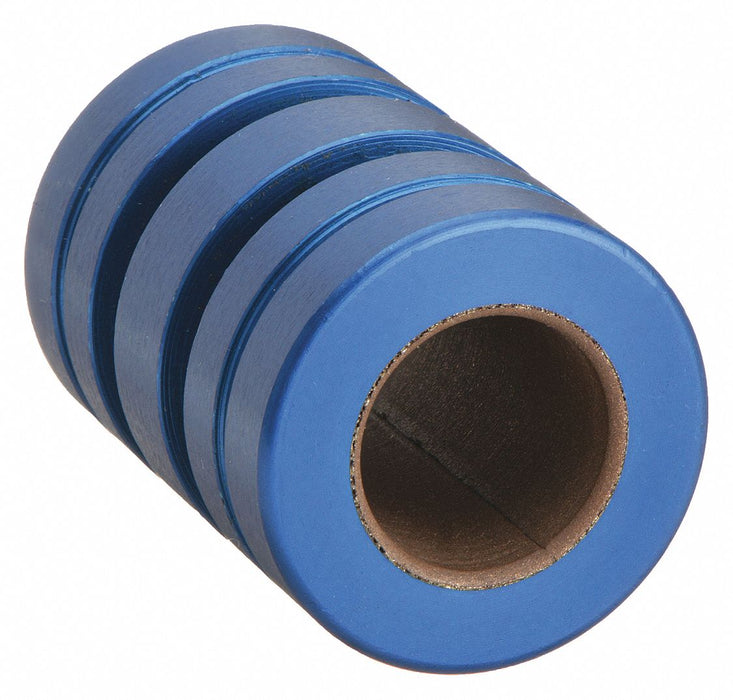

PBC Linear FM30 Standard Linear Bearing, 30 mm Inside Dia, 68 mm Lg, Frelon Gold, Precision

PBC Linear FM30 Standard Linear Bearing, 30 mm Inside Dia, 68 mm Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.4 lbs

$163.94 - $163.94
$163.94
$163.94 - $163.94
$163.94

Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 30 mm, Outside Diameter 47 mm, Overall Length 68 mm, Static Load Capacity 42,026 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FM, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Inside Diameter Tolerance +0.009/+0.096 mm

Type Closed
Material Aluminum
Static Load Capacity 42,026 N
Max. Pv 20,000 lb/sq in-fpm
Temp. Range 0 Degrees to 400 Degrees F
For Use With Linear Motion Shafts
Between Grooves (mm) 48
Accelerated Speed 14 Feet/Second
Self-Alignment Yes
Liner Frelon(TM) Gold
Color Blue
Bearing Type Closed
Lubrication Self Lubricating
Maximum Operating Temperature 400 Degrees F
Series FM
Static Load Capacity (N) 4,284 lbf
Minimum Operating Temperature -400 Degrees F
Running Clearance Class Precision
System of Measurement Metric
Self-Lubrication Self-Lubricating
Between Grooves 15 mm
Maximum PV 20,000 lb/sq in-fpm
Country of Origin United States
