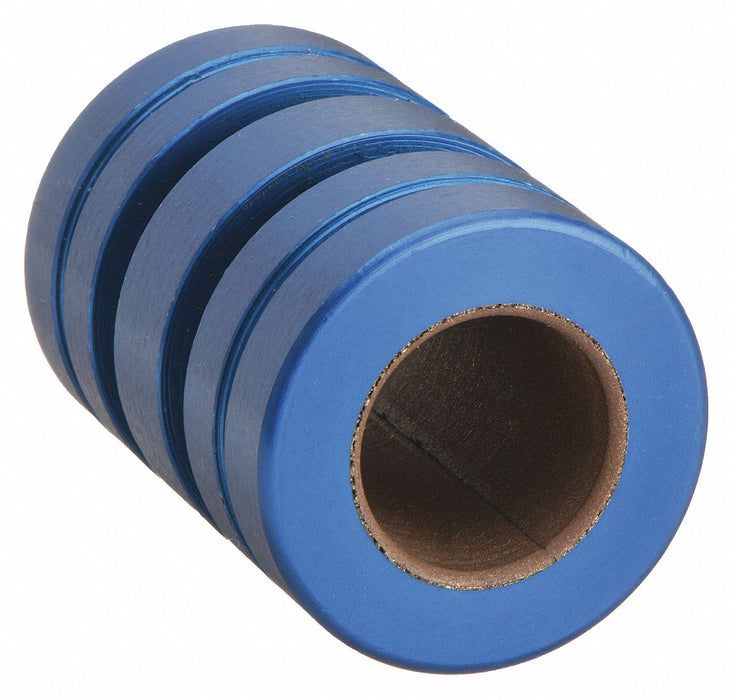

PBC Linear FM08 Standard Linear Bearing, 8 mm Inside Dia, 25 mm Lg, Frelon Gold, Precision

PBC Linear FM08 Standard Linear Bearing, 8 mm Inside Dia, 25 mm Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.05 lbs

$39.42 - $39.42
$39.42
$39.42 - $39.42
$39.42

Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 8 mm, Outside Diameter 16 mm, Overall Length 25 mm, Static Load Capacity 4,120 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FM, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Inside Diameter Tolerance +0.085/+0.063 mm

Type Closed
Material Aluminum
Static Load Capacity 4,120 N
Max. Pv 20,000 lb/sq in-fpm
Temp. Range 0 Degrees to 400 Degrees F
For Use With Linear Motion Shafts
Between Grooves (mm) 14
Accelerated Speed 14 Feet/Second
Self-Alignment Yes
Liner Frelon(TM) Gold
Color Blue
Bearing Type Closed
Lubrication Self Lubricating
Maximum Operating Temperature 400 Degrees F
Series FM
Static Load Capacity (N) 420 lbf
Minimum Operating Temperature -400 Degrees F
Running Clearance Class Precision
System of Measurement Metric
Self-Lubrication Self-Lubricating
Between Grooves 5.33 mm
Maximum PV 20,000 lb/sq in-fpm
Country of Origin United States
