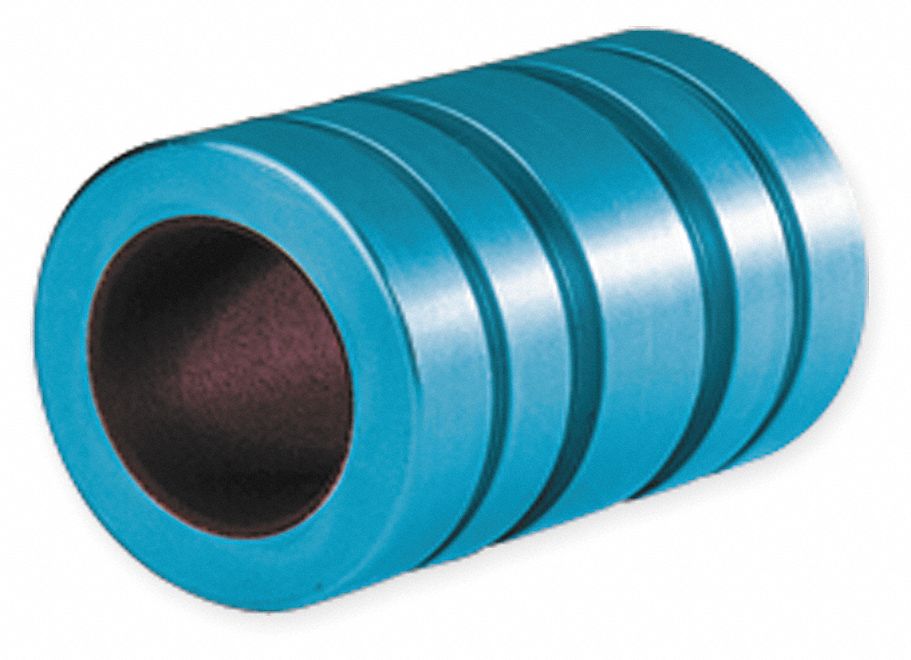

PBC Linear FM05 Standard Linear Bearing, 5 mm Inside Dia, 22 mm Lg, Frelon Gold, Precision

PBC Linear FM05 Standard Linear Bearing, 5 mm Inside Dia, 22 mm Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.05 lbs

$41.16 - $41.16
$41.16
$41.16 - $41.16
$41.16

Standard Linear Bearing, System of Measurement Metric, Running Clearance Class Precision, Inside Diameter 5 mm, Outside Diameter 12 mm, Overall Length 22 mm, Static Load Capacity 2,276 N, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FM, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Inside Diameter Tolerance +0.008/+0.06 mm

Type Closed
Material Aluminum
Static Load Capacity 2,276 N
Max. Pv 20,000 lb/sq in-fpm
Temp. Range 0 Degrees to 400 Degrees F
For Use With Linear Motion Shafts
Between Grooves (mm) 12
Accelerated Speed 14 Feet/Second
Self-Alignment Yes
Liner Frelon(TM) Gold
Color Blue
Bearing Type Closed
Lubrication Self Lubricating
Maximum Operating Temperature 400 Degrees F
Series FM
Static Load Capacity (N) 232 lbf
Minimum Operating Temperature -400 Degrees F
Running Clearance Class Precision
System of Measurement Metric
Self-Lubrication Self-Lubricating
Between Grooves 5 mm
Maximum PV 20,000 lb/sq in-fpm
Country of Origin United States
