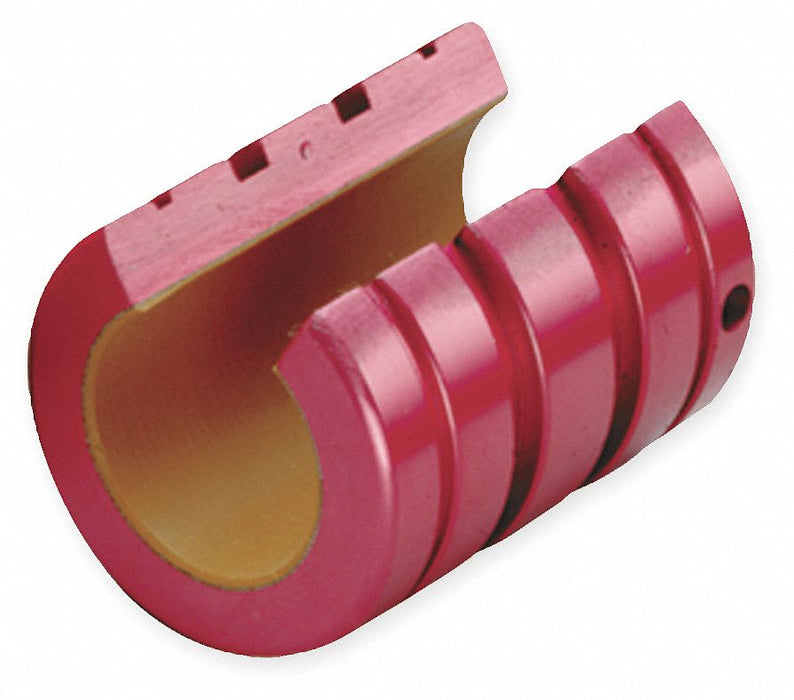

PBC Linear FLN20 Standard Linear Bearing, 1 1/4 in Inside Dia, 2 5/8 in Lg, Frelon Gold, Precision

PBC Linear FLN20 Standard Linear Bearing, 1 1/4 in Inside Dia, 2 5/8 in Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.4 lbs

$201.17 - $201.17
$201.17
$201.17 - $201.17
$201.17

Standard Linear Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 1/4 in, Outside Diameter 2 in, Overall Length 2 5/8 in, Static Load Capacity 5,415 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FLN, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Open, Inside Diameter Tolerance +0.0009/+0.0004 in

Type Open
Material Aluminum
Temp. Range 0 Degrees to 400 Degrees F
For Use With Support and Feather Rails
Max. Pv 20,000 lb/sq in-fpm
Static Load Capacity 5,415 lbf
Self-Alignment Yes
Accelerated Speed 14 Feet/Second
Bearing Type Open
Slot Angle (Degrees) 60
Lubrication Self Lubricating
Color Red
Liner Frelon(TM) Gold
Maximum Operating Temperature 400 Degrees F
Running Clearance Class Precision
Minimum Operating Temperature -400 Degrees F
System of Measurement Inch
Static Load Capacity (N) 10,830 lbf
Series FLN
Between Grooves 0.625 in
Self-Lubrication Self-Lubricating
Slot Angle 60 Degrees
Maximum PV 20,000 lb/sq in-fpm
Country of Origin United States
