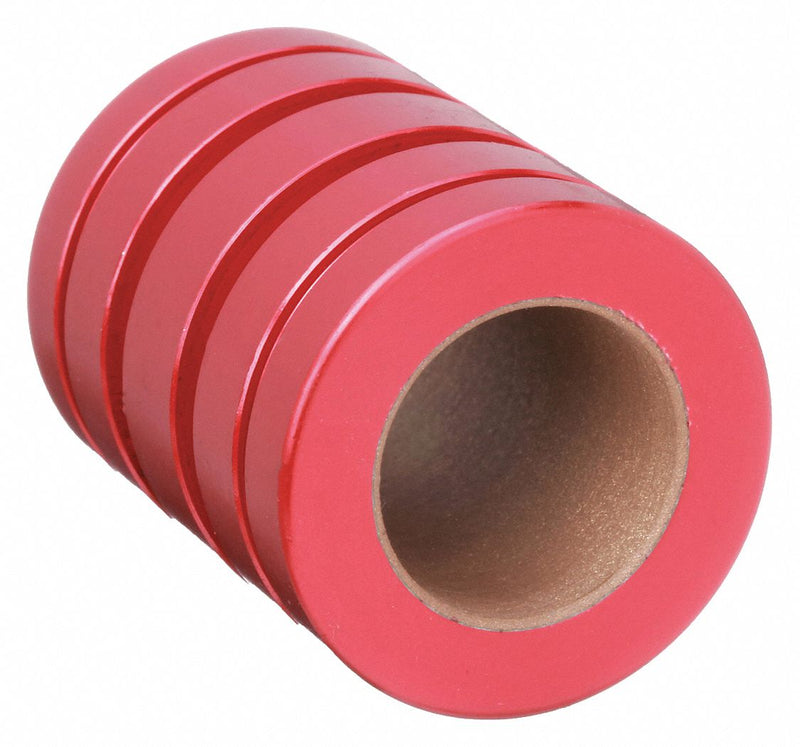

PBC Linear FL08 Standard Linear Bearing, 1/2 in Inside Dia, 1 1/4 in Lg, Frelon Gold, Precision

PBC Linear FL08 Standard Linear Bearing, 1/2 in Inside Dia, 1 1/4 in Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.1 lbs

$44.05 - $44.05
$44.05
$44.05 - $44.05
$44.05

Standard Linear Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 1/2 in, Outside Diameter 7/8 in, Overall Length 1 1/4 in, Static Load Capacity 1,950 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FL, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed

Type Closed
Material Aluminum
For Use With Linear Motion Shafts
Temp. Range 0 Degrees to 400 Degrees F
Max. Pv 20,000 lb/sq in-fpm
Static Load Capacity 1,950 lbf
Liner Frelon(TM) Gold
Self-Alignment Yes
Lubrication Self Lubricating
Bearing Type Closed
Color Red
Accelerated Speed 14 Feet/Second
Between Grooves 0.25 in
Running Clearance Class Precision
System of Measurement Inch
Static Load Capacity (N) 1,950 lbf
Series FL
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
Maximum PV 20,000 lb/sq in-fpm
Self-Lubrication Self-Lubricating
Country of Origin United States
