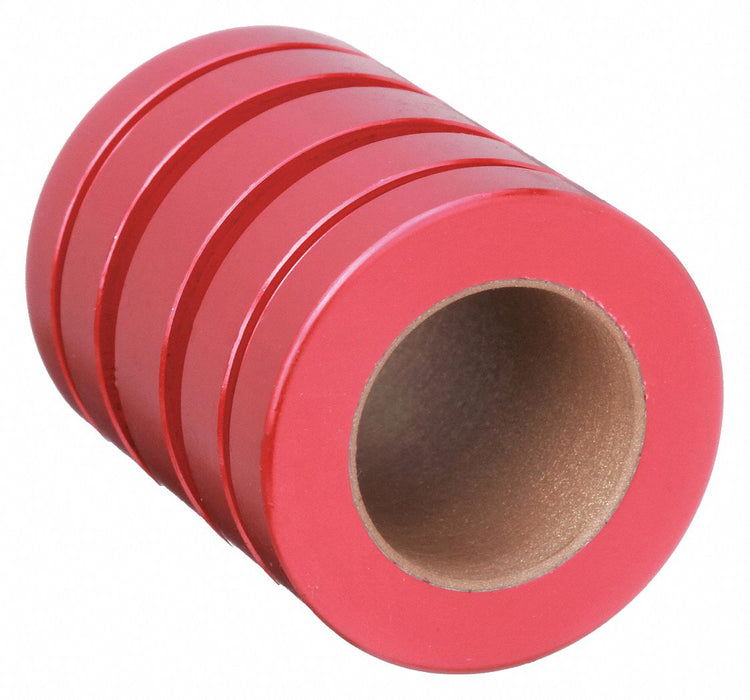

PBC Linear FL03 Standard Linear Bearing, 1/4 in Inside Dia, 1/2 in Lg, Frelon Gold, Precision

PBC Linear FL03 Standard Linear Bearing, 1/4 in Inside Dia, 1/2 in Lg, Frelon Gold, Precision

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.05 lbs

$36.99 - $36.99
$36.99
$36.99 - $36.99
$36.99

Standard Linear Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 1/4 in, Outside Diameter 3/8 in, Overall Length 1/2 in, Static Load Capacity 220 lbf, Material Aluminum, Liner Frelon(TM) Gold, Self-Lubrication Self-Lubricating, Series FL, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Inside Diameter Tolerance +0.0004/+0.0007 in

Type Closed
Material Aluminum
For Use With Linear Motion Shafts
Temp. Range 0 Degrees to 400 Degrees F
Max. Pv 20,000 lb/sq in-fpm
Static Load Capacity 220 lbf
Liner Frelon(TM) Gold
Self-Alignment Yes
Lubrication Self Lubricating
Bearing Type Closed
Color Red
Accelerated Speed 14 Feet/Second
Running Clearance Class Precision
System of Measurement Inch
Static Load Capacity (N) 220 lbf
Series FL
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
Maximum PV 20,000 lb/sq in-fpm
Self-Lubrication Self-Lubricating
Country of Origin United States
