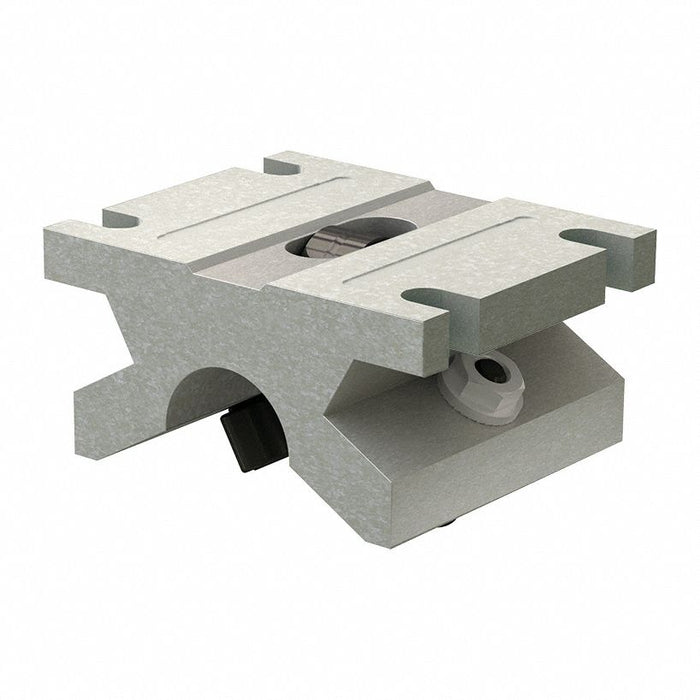

PBC Linear F-SPB-20-OPN Floating Single Roller Pillow Block, For 1 1/4 in Round Shaft, 1,400 lbf Dynamic Load Rating

PBC Linear F-SPB-20-OPN Floating Single Roller Pillow Block, For 1 1/4 in Round Shaft, 1,400 lbf Dynamic Load Rating

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 2.0 lbs

$589.54 - $589.54
$589.54
$589.54 - $589.54
$589.54

Single Roller Pillow Block, System of Measurement Inch, For Shaft Diameter 1 1/4 in, Overall Length 3.375 in, Overall Width 4 in, Overall Height 2.5625 in, Center Height 1.5 in, Dynamic Load Rating 1,400 lbf, Expansion Type Floating, Carriage Type Single, Mount Hole Center to Center Width 3.5 in, Mount Hole Center to Center Length 2 in, For Shaft Type Round, Mounting Hole Diameter 0.21875 in, Shaft Center to Mount Hole Width 1.75 in, Bearing Material Aluminum Alloy

System of Measurement Inch
Housing Material Aluminum Alloy
Bearing Material Aluminum Alloy
Resistance Properties Corrosion Resistance
Carriage Type Single
Weight 2 lb
Roller Bearing Type Ball Bearing
Dynamic Load Rating 1,400 lbf
Expansion Type Floating
For Shaft Type Round
Maximum Temperature 392 Degrees F
Lubricant Material Grease Lubrication
Minimum Temperature 250 Degrees F
Country of Origin United States
