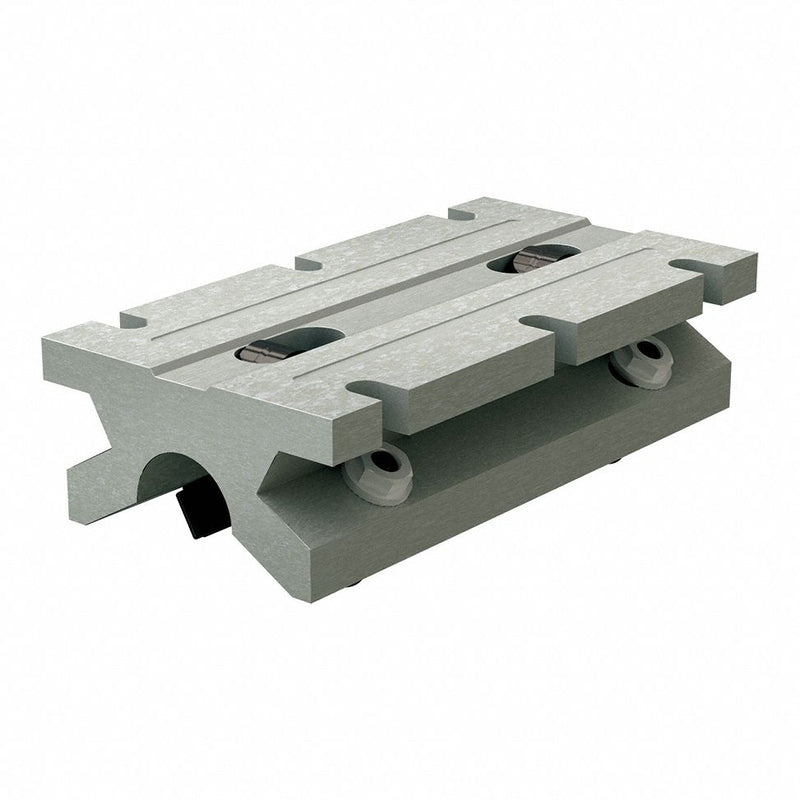

PBC Linear F-MTWN-30-OPN Floating Twin Roller Pillow Block, For 30 mm Round Shaft, 12,455.02 N Dynamic Load Rating

PBC Linear F-MTWN-30-OPN Floating Twin Roller Pillow Block, For 30 mm Round Shaft, 12,455.02 N Dynamic Load Rating

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 4.7 lbs

$1,200.92 - $1,200.92
$1,200.92
$1,200.92 - $1,200.92
$1,200.92

Twin Roller Pillow Block, System of Measurement Metric, For Shaft Diameter 30 mm, Overall Length 190.5 mm, Overall Width 101.6 mm, Overall Height 2.5625 in, Center Height 1.465 in, Dynamic Load Rating 12,455.02 N, Expansion Type Floating, Carriage Type Twin, Mount Hole Center to Center Width 3.5 in, Mount Hole Center to Center Length 5.5 in, For Shaft Type Round, Mounting Hole Diameter 0.21875 in, Shaft Center to Mount Hole Width 1.75 in, Bearing Material Aluminum Alloy, Mounting Bolt Size #10

Bore Diameter 30 mm
Center Height 1.465 in
Mount Hole Center-to-Center Length 5-1/2 in
Mount Hole Size 0.21875 in
Overall Length 190.5 mm
Overall Width 101.6 mm
Overall Height 2-9/16 in
Shaft Center to Mount Hole Width 1.75 in
Mounting Bolt Size #10
Mount Hole Center-to-Center Width 3.5 in
System of Measurement Metric
Housing Material Aluminum Alloy
Bearing Material Aluminum Alloy
Standards ISO
Carriage Type Twin
Expansion Type Floating
For Shaft Type Round
Resistance Properties Corrosion Resistance
Dynamic Load Rating 12,455.02 N
Lubricant Material Grease Lubrication
Country of Origin United States
