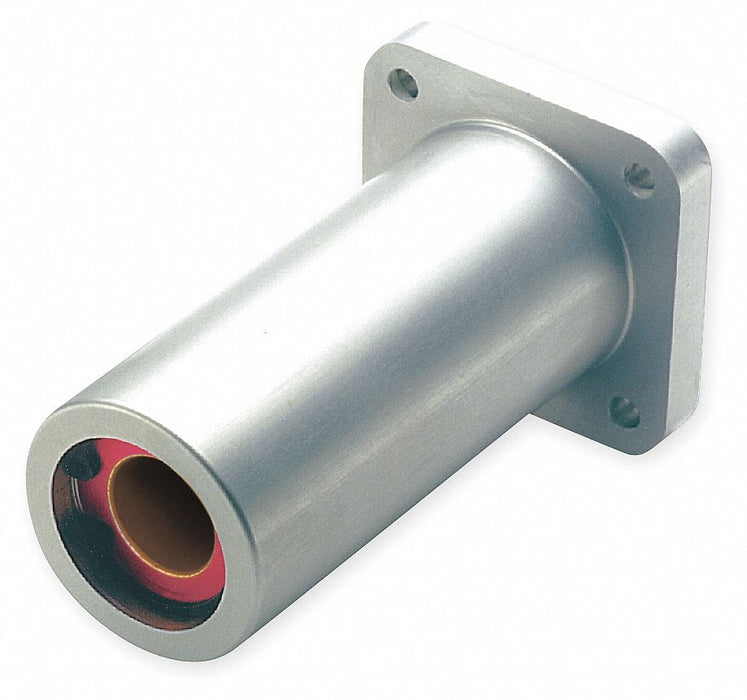

PBC Linear DFP16 Mounted Linear Bearing, Twin, Self-Aligning, 1 in Bore, Frelon Gold Liner

PBC Linear DFP16 Mounted Linear Bearing, Twin, Self-Aligning, 1 in Bore, Frelon Gold Liner

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 1.85 lbs

$576.39 - $576.39
$576.39
$576.39 - $576.39
$576.39

Mounted Linear Bearing, Inside Diameter 1 in, Outside Diameter 2 1/4 in, Flange Width 2.75 in, Overall Length 5 5/8 in, Dynamic Load Capacity 7,050 lbf, Flange Thickness 0.5 in, Material Aluminum, Lubrication Self Lubricating, Series Simplicity, Static Load Capacity 7,620 lbf, Steady State Speed 5 fps, Housing Style Twin, System of Measurement Inch, Self-Alignment Self-Aligning, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F

Material Aluminum
Retaining Ring External
Temp. Range (F) 0 - 400
Static Load Capacity (N) 7,620 lbf
Dynamic Load Capacity (N) 7,050 lbf
Dynamic Load Capacity (Lb.) 7,050 lb
Steady State Speed 5 fps
Lubrication Self Lubricating
Liner Frelon(TM) Gold
Accelerated Speed 14 fps
Locking Type Retaining Ring
Static Load Capacity (Lb.) 7,620 lb
Bearing Type Plain
Self-Alignment Self-Aligning
Type Square Flanged
Finish Anodized
Housing Style Twin
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
Series Simplicity
System of Measurement Inch
Dynamic Load Capacity 7,050 lbf
Static Load Capacity 7,620 lbf
Liner Material Frelon (TM) Gold
Country of Origin United States
