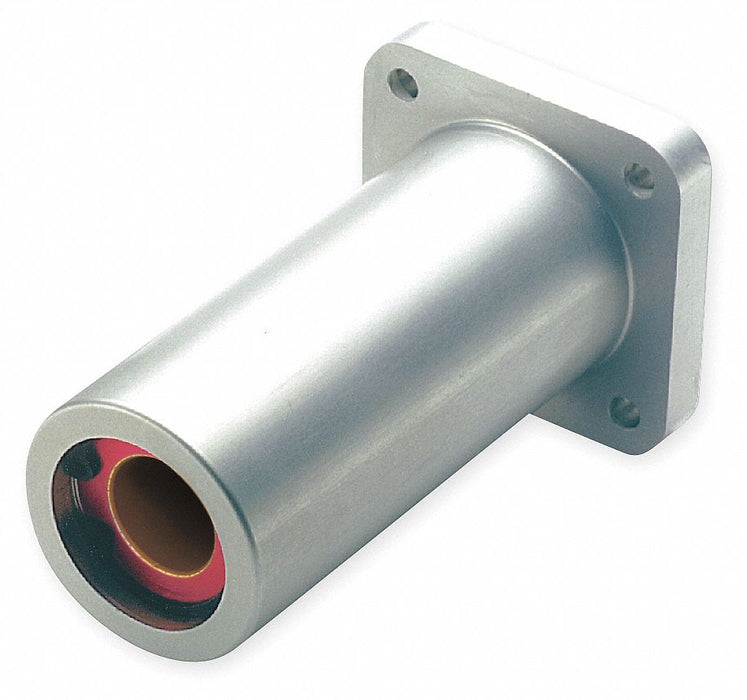

PBC Linear DFP12 Mounted Linear Bearing, Twin, Self-Aligning, 3/4 in Bore, Frelon Gold Liner

PBC Linear DFP12 Mounted Linear Bearing, Twin, Self-Aligning, 3/4 in Bore, Frelon Gold Liner

UPC: | Harmonization / Schedule B : 8482.10.5012

Country of Origin: United States | Shipping Weight: 0.9 lbs

$413.59 - $413.59
$413.59
$413.59 - $413.59
$413.59

Mounted Linear Bearing, Inside Diameter 3/4 in, Outside Diameter 1 3/4 in, Flange Width 2.38 in, Overall Length 4 3/16 in, Dynamic Load Capacity 3,810 lbf, Flange Thickness 0.375 in, Material Aluminum, Lubrication Self Lubricating, Series Simplicity, Static Load Capacity 5,880 lbf, Steady State Speed 5 fps, Housing Style Twin, System of Measurement Inch, Self-Alignment Self-Aligning, Maximum Operating Temperature 400 Degrees F, Minimum Operating Temperature -400 Degrees F

Material Aluminum
Retaining Ring External
Locking Type Retaining Ring
Accelerated Speed 14 fps
Static Load Capacity (N) 5,880 lbf
Temp. Range (F) 0 - 400
Lubrication Self Lubricating
Self-Alignment Self-Aligning
Steady State Speed 5 fps
Bearing Type Plain
Dynamic Load Capacity (N) 3,810 lbf
Liner Frelon(TM) Gold
Static Load Capacity (Lb.) 5,880 lb
Dynamic Load Capacity (Lb.) 3,810 lb
Finish Anodized
Type Square Flanged
Series Simplicity
System of Measurement Inch
Housing Style Twin
Maximum Operating Temperature 400 Degrees F
Minimum Operating Temperature -400 Degrees F
Dynamic Load Capacity 3,810 lbf
Static Load Capacity 5,880 lbf
Liner Material Frelon (TM) Gold
Country of Origin United States
