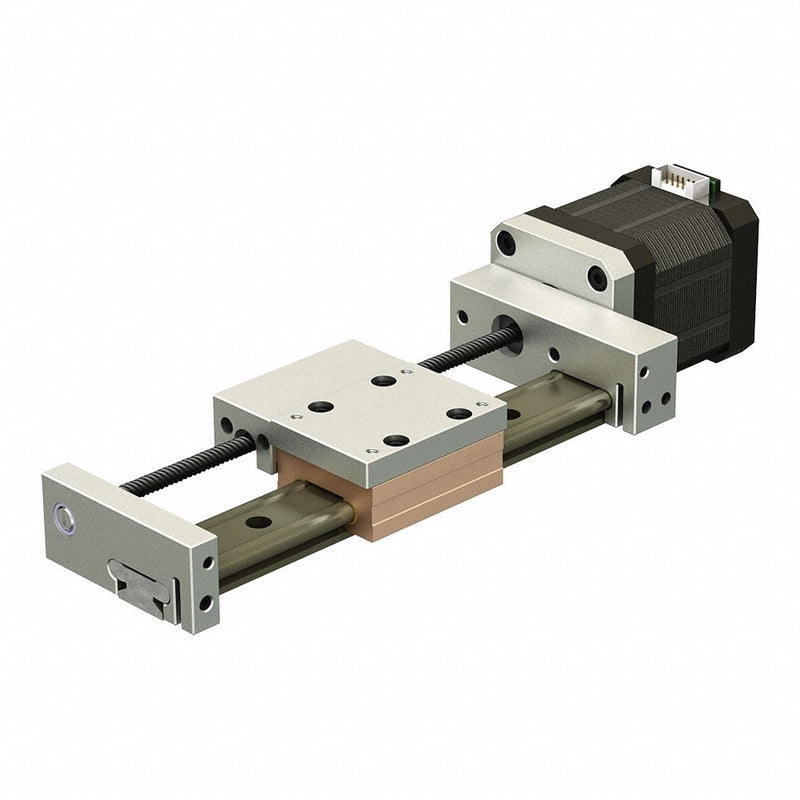

PBC Linear CSMR15D-000-0510-3A1-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 510 mm Rail, Plain Bearing, Stepper Motor

PBC Linear CSMR15D-000-0510-3A1-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 510 mm Rail, Plain Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 2 lbs

$1,409.16 - $1,409.16
$1,409.16
$1,409.16 - $1,409.16
$1,409.16

Compact Linear Actuator, Carriage Type Plain Bearing, Rail System Type Gliding Surface Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 510 mm, Overall Height 64 mm, Bearing Type Plain, Bearing Load Capacity 240 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Screw Type Lead Screw
Carriage Type Plain Bearing
Motor Mount Option NEMA 17 Single Stack
Number of Carriages Included 1
Bearing Type Plain
Carriage Bearing Moment Load Capacity 15.1 Nm (Mx), 9 Nm (My), 9 Nm (Mz)
Acceleration 50 m/sq sec
Voltage Rating 24V
Drive Input Speed 2,000 RPM
Bearing Load Capacity 240 N
Motor Type Stepper Motor
Speed 4,200 mm/sec
Lubricant Petroleum Based Grease
Rail System Type Gliding Surface Rail
Nut Type Anti-Backlash
Repeatability 0.02 mm
Lubricant Type Petroleum Based Grease
Travel Speed 4,200 mm/sec
Maximum Acceleration 50 m/sq sec
Cover Type No Cover
Country of Origin United States
