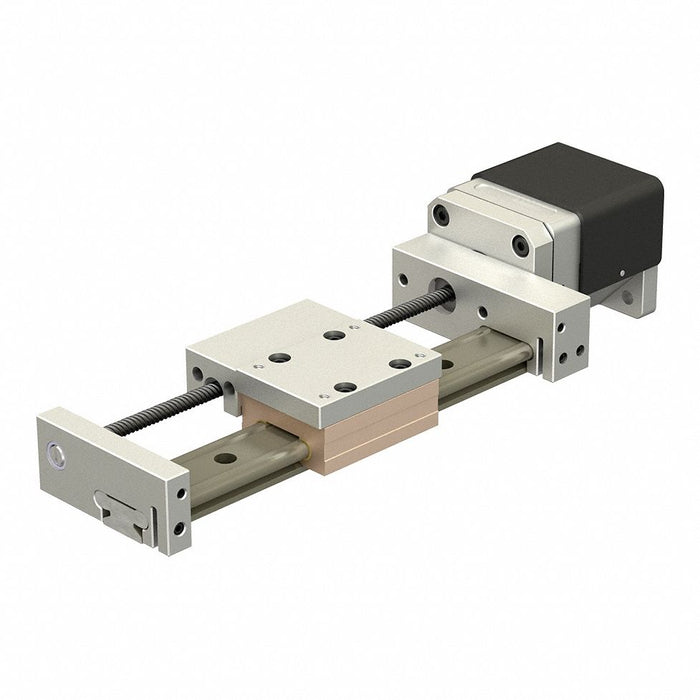

PBC Linear CSMR15D-000-0510-1ZF-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 510 mm Rail, Plain Bearing, Stepper Motor

PBC Linear CSMR15D-000-0510-1ZF-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 510 mm Rail, Plain Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.8 lbs

$1,414.38 - $1,414.38
$1,414.38
$1,414.38 - $1,414.38
$1,414.38

Compact Linear Actuator, Carriage Type Plain Bearing, Rail System Type Gliding Surface Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Motor Mount, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 510 mm, Overall Height 64 mm, Bearing Type Plain, Bearing Load Capacity 240 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Carriage Type Plain Bearing
Screw Type Lead Screw
Rail System Type Gliding Surface Rail
Acceleration 50 m/sq sec
Voltage Rating 24V
Lubricant Petroleum Based Grease
Number of Carriages Included 1
Motor Mount Option NEMA 17 Motor Mount
Speed 4,200 mm/sec
Carriage Bearing Moment Load Capacity 15.1 Nm (Mx), 9 Nm (My), 9 Nm (Mz)
Repeatability 0.02 mm
Drive Input Speed 2,000 RPM
Bearing Load Capacity 240 N
Motor Type Stepper Motor
Bearing Type Plain
Nut Type Anti-Backlash
Lubricant Type Petroleum Based Grease
Cover Type No Cover
Travel Speed 4,200 mm/sec
Maximum Acceleration 50 m/sq sec
Country of Origin United States
