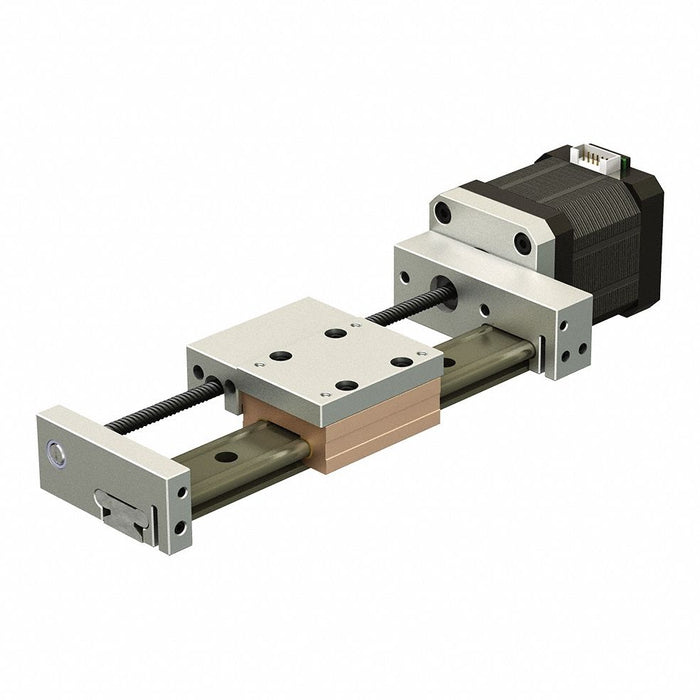

PBC Linear CSMR15D-000-0200-3A1-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 200 mm Rail, Plain Bearing, Stepper Motor

PBC Linear CSMR15D-000-0200-3A1-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 200 mm Rail, Plain Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.8 lbs

$1,208.15 - $1,208.15
$1,208.15
$1,208.15 - $1,208.15
$1,208.15

Compact Linear Actuator, Carriage Type Plain Bearing, Rail System Type Gliding Surface Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 200 mm, Overall Height 64 mm, Bearing Type Plain, Bearing Load Capacity 3,114 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Carriage Type Plain Bearing
Screw Type Lead Screw
Bearing Type Plain
Carriage Bearing Moment Load Capacity 15.1 Nm (Mx), 9 Nm (My), 9 Nm (Mz)
Speed 4,200 mm/sec
Acceleration 50 m/sq sec
Lubricant Petroleum Based Grease
Nut Type Anti-Backlash
Repeatability 0.02 mm
Voltage Rating 24V
Drive Input Speed 2,000 RPM
Motor Type Stepper Motor
Rail System Type Gliding Surface Rail
Bearing Load Capacity 3,114 N
Motor Mount Option NEMA 17 Single Stack
Number of Carriages Included 1
Travel Speed 4,200 mm/sec
Maximum Acceleration 50 m/sq sec
Cover Type No Cover
Lubricant Type Petroleum Based Grease
Country of Origin United States
