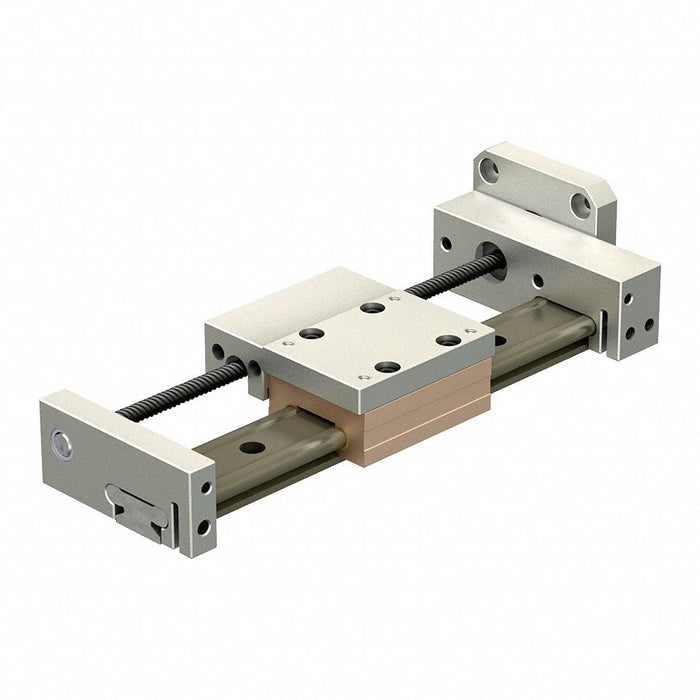

PBC Linear CSMR15D-000-0200-1Z0-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 200 mm Rail, Plain Bearing, Stepper Motor

PBC Linear CSMR15D-000-0200-1Z0-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 200 mm Rail, Plain Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.6 lbs

$1,213.37 - $1,213.37
$1,213.37
$1,213.37 - $1,213.37
$1,213.37

Compact Linear Actuator, Carriage Type Plain Bearing, Rail System Type Gliding Surface Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option None - Motor Mount Kit, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 200 mm, Overall Height 64 mm, Bearing Type Plain, Bearing Load Capacity 3,114 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Screw Type Lead Screw
Carriage Type Plain Bearing
Speed 4,200 mm/sec
Motor Mount Option None - Motor Mount Kit
Voltage Rating 24V
Bearing Type Plain
Motor Type Stepper Motor
Rail System Type Gliding Surface Rail
Bearing Load Capacity 3,114 N
Lubricant Petroleum Based Grease
Drive Input Speed 2,000 RPM
Acceleration 50 m/sq sec
Carriage Bearing Moment Load Capacity 15.1 Nm (Mx), 9 Nm (My), 9 Nm (Mz)
Nut Type Anti-Backlash
Repeatability 0.02 mm
Number of Carriages Included 1
Lubricant Type Petroleum Based Grease
Cover Type No Cover
Maximum Acceleration 50 m/sq sec
Travel Speed 4,200 mm/sec
Country of Origin United States
