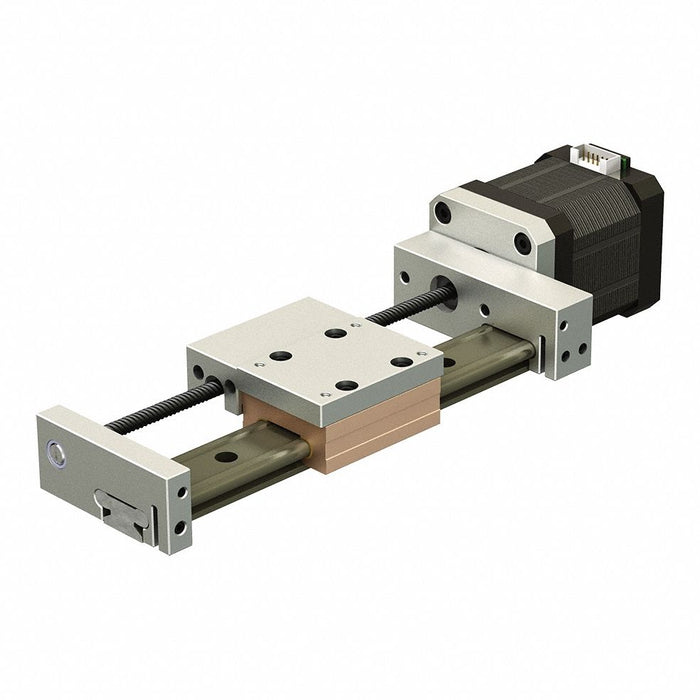

PBC Linear CSMR15D-000-0080-3A1-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 80 mm Rail, Plain Bearing, Stepper Motor

PBC Linear CSMR15D-000-0080-3A1-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 80 mm Rail, Plain Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.5 lbs

$1,130.66 - $1,130.66
$1,130.66
$1,130.66 - $1,130.66
$1,130.66

Compact Linear Actuator, Carriage Type Plain Bearing, Rail System Type Gliding Surface Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 80 mm, Overall Height 64 mm, Bearing Type Plain, Bearing Load Capacity 240 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Carriage Type Plain Bearing
Screw Type Lead Screw
Carriage Bearing Moment Load Capacity 15.1 Nm (Mx), 9 Nm (My), 9 Nm (Mz)
Nut Type Anti-Backlash
Number of Carriages Included 1
Bearing Load Capacity 240 N
Acceleration 50 m/sq sec
Voltage Rating 24V
Motor Type Stepper Motor
Motor Mount Option NEMA 17 Single Stack
Drive Input Speed 2,000 RPM
Rail System Type Gliding Surface Rail
Repeatability 0.02 mm
Speed 4,200 mm/sec
Lubricant Petroleum Based Grease
Bearing Type Plain
Cover Type No Cover
Maximum Acceleration 50 m/sq sec
Lubricant Type Petroleum Based Grease
Travel Speed 4,200 mm/sec
Country of Origin United States
