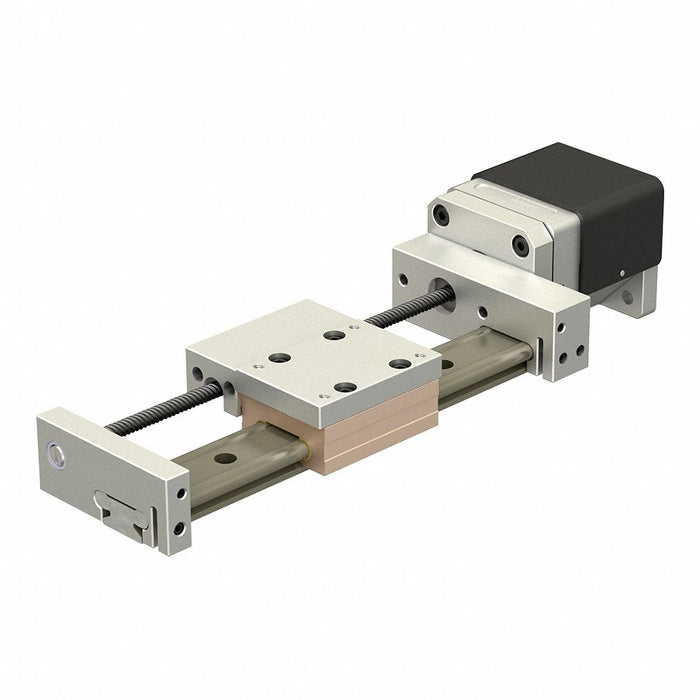

PBC Linear CSMR15D-000-0080-1ZF-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 80 mm Rail, Plain Bearing, Stepper Motor

PBC Linear CSMR15D-000-0080-1ZF-AGXR2-0 Compact Linear Actuator, 6 mm Lead Screw, 6 mm Lead, 80 mm Rail, Plain Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 1.4 lbs

$1,135.90 - $1,135.90
$1,135.90
$1,135.90 - $1,135.90
$1,135.90

Compact Linear Actuator, Carriage Type Plain Bearing, Rail System Type Gliding Surface Rail, Screw Diameter 6 mm, Lead Diameter 6 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Motor Mount, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type No Cover, Stroke Length 10 mm, Rail Length 80 mm, Overall Height 64 mm, Bearing Type Plain, Bearing Load Capacity 240 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Screw Type Lead Screw
Carriage Type Plain Bearing
Bearing Load Capacity 240 N
Voltage Rating 24V
Nut Type Anti-Backlash
Rail System Type Gliding Surface Rail
Acceleration 50 m/sq sec
Repeatability 0.02 mm
Number of Carriages Included 1
Lubricant Petroleum Based Grease
Motor Type Stepper Motor
Speed 4,200 mm/sec
Motor Mount Option NEMA 17 Motor Mount
Bearing Type Plain
Carriage Bearing Moment Load Capacity 15.1 Nm (Mx), 9 Nm (My), 9 Nm (Mz)
Drive Input Speed 2,000 RPM
Maximum Acceleration 50 m/sq sec
Travel Speed 4,200 mm/sec
Lubricant Type Petroleum Based Grease
Cover Type No Cover
Country of Origin United States
