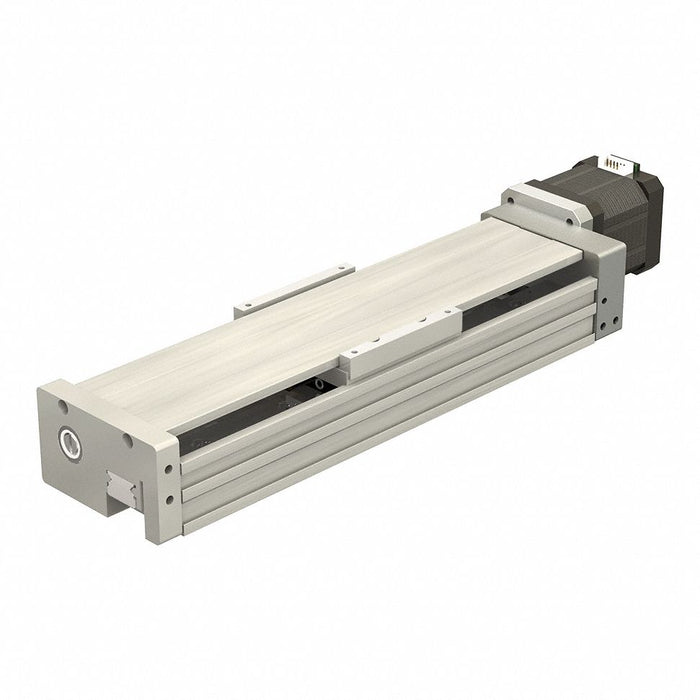

PBC Linear CSLSM10AGXR3A1-2LT-1000-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 1,000 mm Rail, Ball Bearing, Stepper Motor

PBC Linear CSLSM10AGXR3A1-2LT-1000-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 1,000 mm Rail, Ball Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 4 lbs

$2,976.55 - $2,976.55
$2,976.55
$2,976.55 - $2,976.55
$2,976.55

Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Drive End Option PBC Linear Integrated Motor Screw, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 1,000 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Drive End Option PBC Linear Integrated Motor Screw
Acceleration 50 m/sq sec
Drive Input Speed 3,000 RPM
Nut Type Anti-Backlash
Carriage Type Profile Rail
Rail System Type Profile Rail
Repeatability 0.02 mm
Lubricant Oil Based Lithium Soap Grease
Bearing Type Ball
Voltage Rating 24V
Screw Type Lead Screw
Motor Mount Option NEMA 17 Single Stack
Bearing Load Capacity 2,500 N
Cover Type Tall
Number of Carriages Included 1
Motor Type Stepper Motor
Carriage Bearing Moment Load Capacity 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx)
Speed 4,200 mm/sec
Travel Speed 4,200 mm/sec
Lubricant Type Oil Based Lithium Soap Grease
Maximum Acceleration 50 m/sq sec
Country of Origin United States
