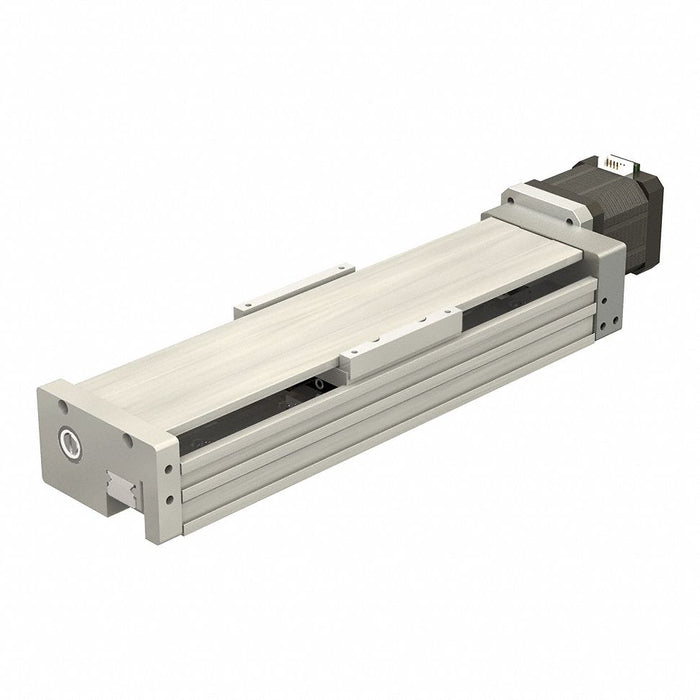

PBC Linear CSLSM10AGXR3A1-2LT-0130-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 130 mm Rail, Ball Bearing, Stepper Motor

PBC Linear CSLSM10AGXR3A1-2LT-0130-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 130 mm Rail, Ball Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 3 lbs

$1,484.53 - $1,484.53
$1,484.53
$1,484.53 - $1,484.53
$1,484.53

Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Single Stack, Drive End Option PBC Linear Integrated Motor Screw, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 130 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Acceleration 50 m/sq sec
Number of Carriages Included 1
Repeatability 0.02 mm
Voltage Rating 24V
Speed 4,200 mm/sec
Screw Type Lead Screw
Carriage Type Profile Rail
Lubricant Oil Based Lithium Soap Grease
Cover Type Tall
Carriage Bearing Moment Load Capacity 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx)
Bearing Load Capacity 2,500 N
Drive Input Speed 3,000 RPM
Motor Mount Option NEMA 17 Single Stack
Drive End Option PBC Linear Integrated Motor Screw
Bearing Type Ball
Rail System Type Profile Rail
Motor Type Stepper Motor
Travel Speed 4,200 mm/sec
Lubricant Type Oil Based Lithium Soap Grease
Maximum Acceleration 50 m/sq sec
Nut Type Anti-Backlash
Country of Origin United States
