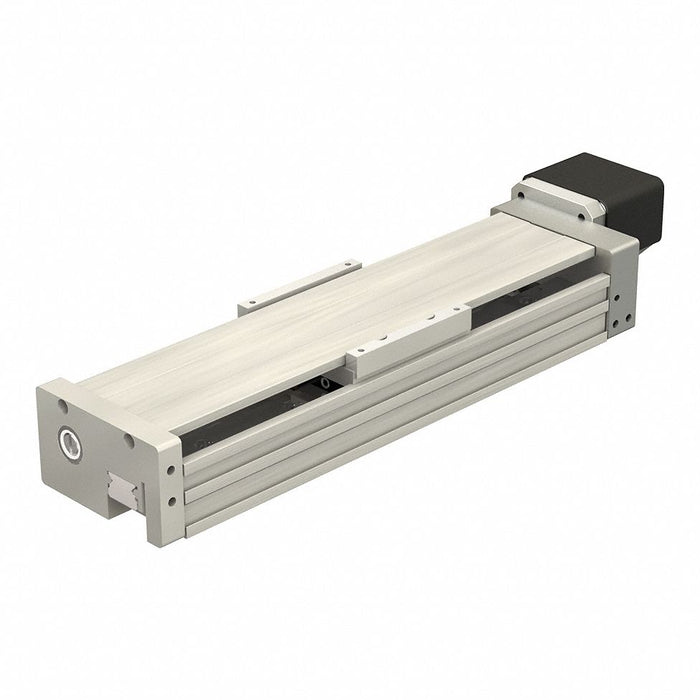

PBC Linear CSLSM10AGXR1ZF-2LT-1000-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 1,000 mm Rail, Ball Bearing, Stepper Motor

PBC Linear CSLSM10AGXR1ZF-2LT-1000-0 Compact Linear Actuator, 10 mm Lead Screw, 10 mm Lead, 1,000 mm Rail, Ball Bearing, Stepper Motor

UPC: | Harmonization / Schedule B : 8483.40.8000

Country of Origin: United States | Shipping Weight: 4 lbs

$2,980.73 - $2,980.73
$2,980.73
$2,980.73 - $2,980.73
$2,980.73

Compact Linear Actuator, Carriage Type Profile Rail, Rail System Type Profile Rail, Screw Diameter 10 mm, Lead Diameter 10 mm, Repeatability 0.02 mm, Motor Mount Option NEMA 17 Motor Mount, Drive End Option Shaft, Nut Type Anti-Backlash, Number of Carriages Included 1, Cover Type Tall, Stroke Length 10 mm, Rail Length 1,000 mm, Overall Height 67.8 mm, Bearing Type Ball, Bearing Load Capacity 2,500 N, Motor Type Stepper Motor, Maximum Acceleration 50 m/sq sec

Bearing Type Ball
Motor Mount Option NEMA 17 Motor Mount
Drive End Option Shaft
Cover Type Tall
Acceleration 50 m/sq sec
Bearing Load Capacity 2,500 N
Number of Carriages Included 1
Carriage Type Profile Rail
Repeatability 0.02 mm
Screw Type Lead Screw
Nut Type Anti-Backlash
Speed 4,200 mm/sec
Motor Type Stepper Motor
Drive Input Speed 3,000 RPM
Carriage Bearing Moment Load Capacity 13.1 Nm (My), 13.1 Nm (Mz), 20.2 Nm (Mx)
Rail System Type Profile Rail
Voltage Rating 24V
Lubricant Oil Based Lithium Soap Grease
Lubricant Type Oil Based Lithium Soap Grease
Maximum Acceleration 50 m/sq sec
Travel Speed 4,200 mm/sec
Country of Origin United States
